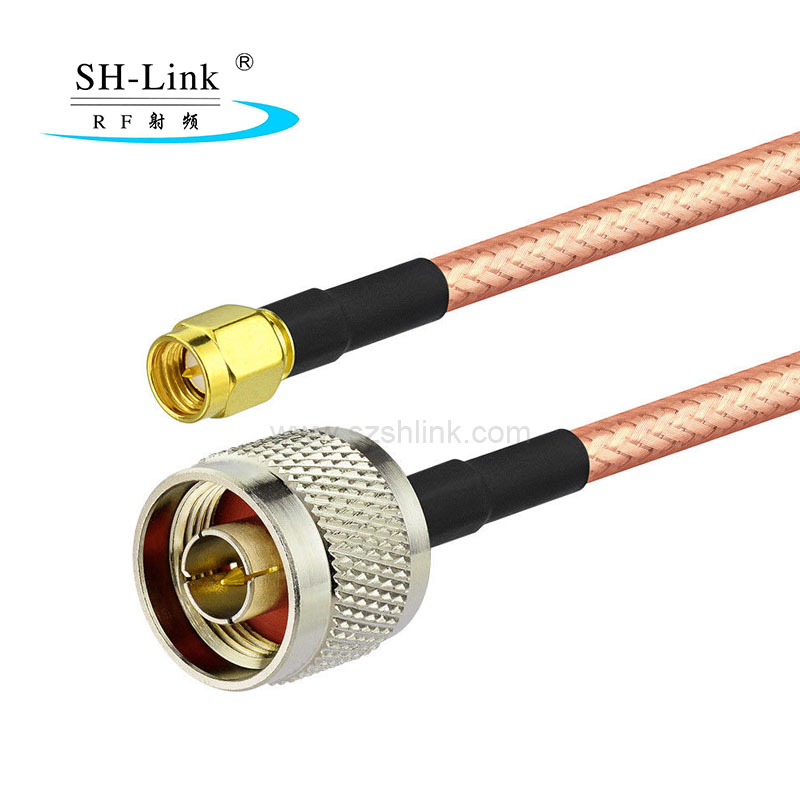

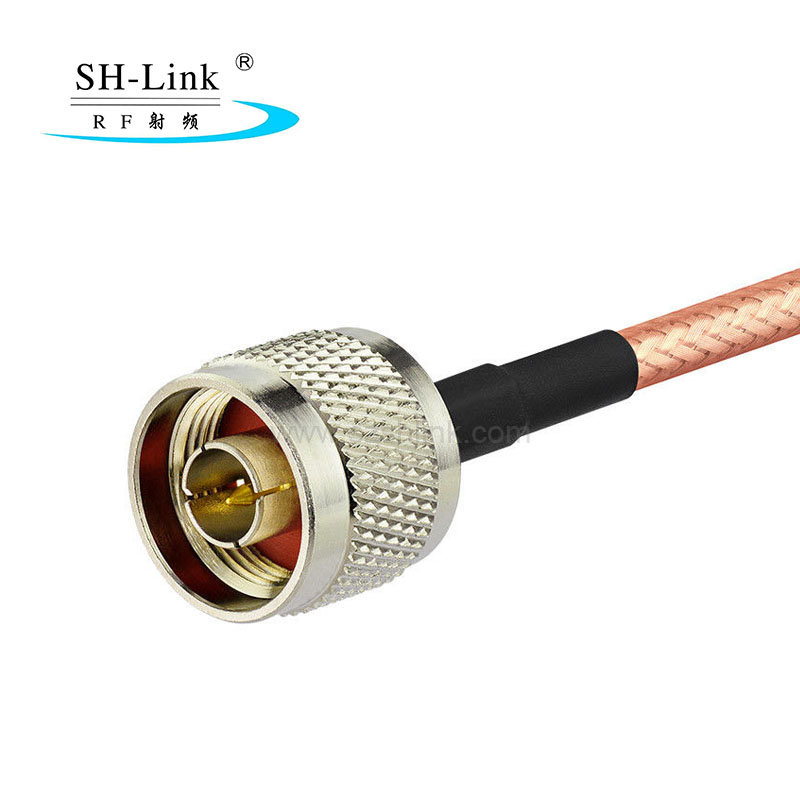

Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connector is high reliability,great vibration performance,excellent mechanical and electrical performance etc.they are used in connection with RF coaxial cable in radio instrument、communication equipment、microwave test and ground launch system at vibration and inclement weather circumstance.By using semi-rigid or semi-flex cable,this type will gain smaller VSWR,and the frequency can by up to 11 GHz.
Our custom RF cable assemblies are built-in and shipped worldwide

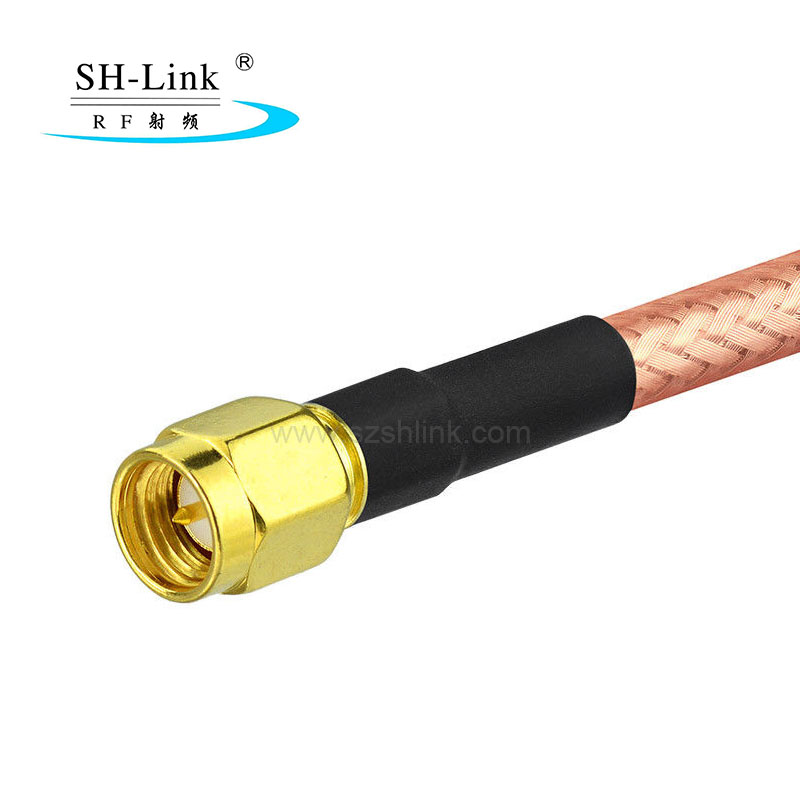

RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB (Double Braid Shield )MIL-C-17 RG316 Coaxial Cable
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG213/RG214/RG223/RG316/RG316-DS/RG400/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling us
