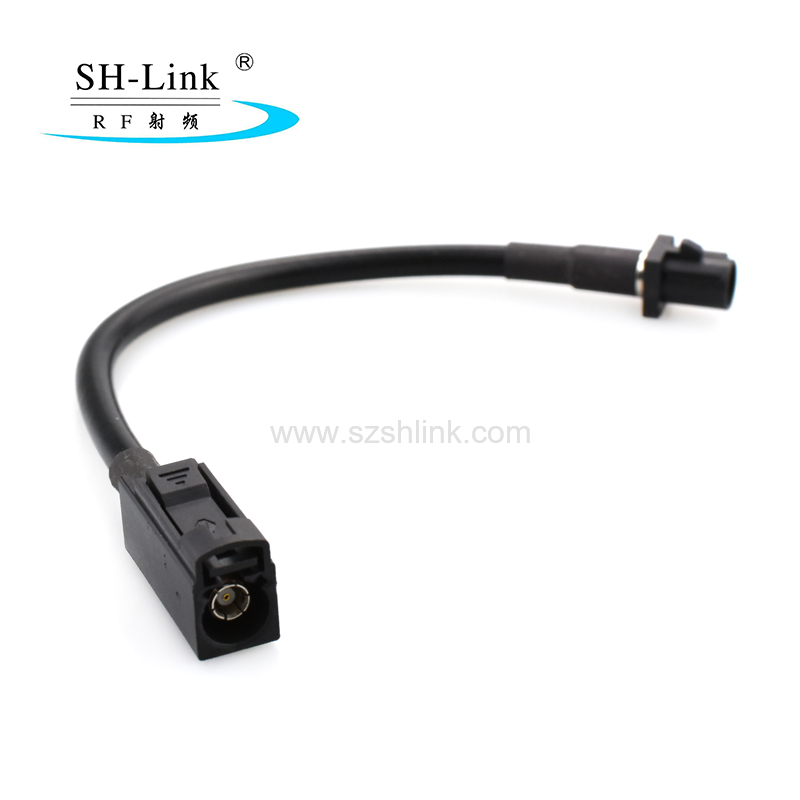

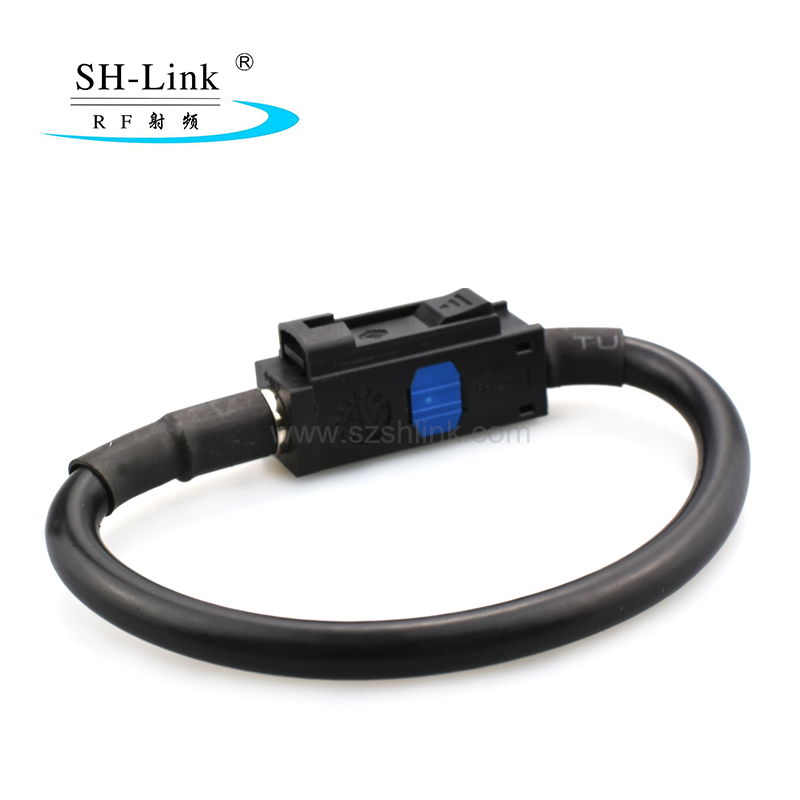

Fakra B straight female-male coaxial cables are used in automotive electronics (in-vehicle DAB
digital radio, high-definition broadcast signal transmission, and adaptation to smart cockpit
infotainment systems), radio frequency test and measurement (quality inspection on automotive
electronics production lines, and high-frequency signal verification in laboratories), and industrial
communication equipment (short-range signal interconnection of miniaturized high-frequency modules).

 Fakra Female Connector materials:

1. Body: Nickel-plated brass;

2.  Insulator: PTFE;

3. Center pin: Gold-plated beryllium copper;

4. Copper tube: Nickel-plated brass;

5. Snap ring: Beryllium copper;

6. Outer shell: PA66+30%GF;

7. Snap ring: PA66+30%GF;

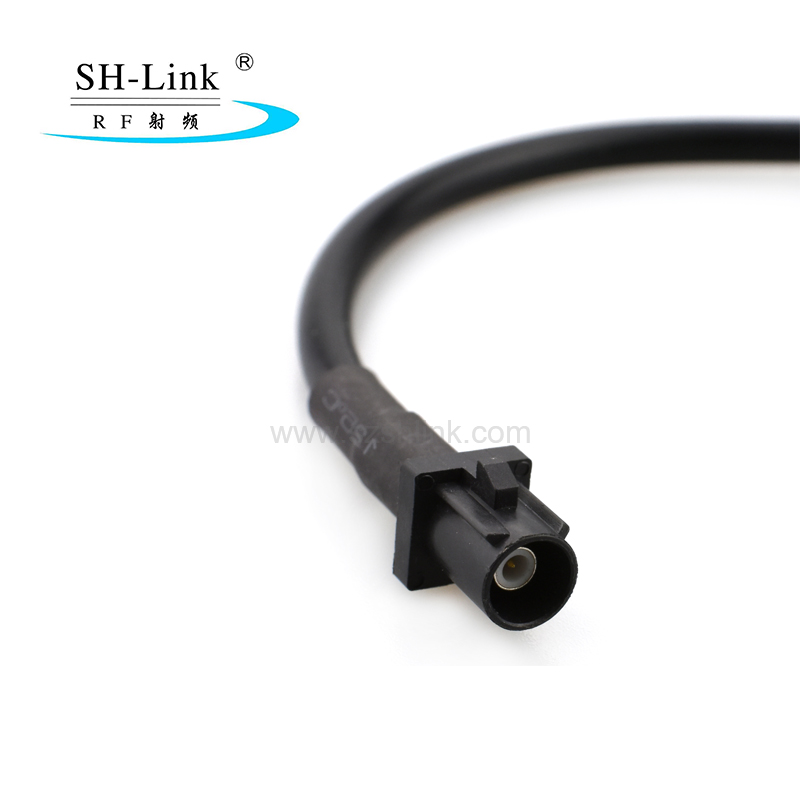

Fakra Male Connector materials:

1. Body: Nickel-plated brass;

2.  Insulator: PTFE;

3. Center pin: Gold-plated brass;

4. Outer shell: PA66+30%GF;
5.Copper tube: Nickel-plated brass;

RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB   (Double Braid Shield )MIL-C-17 RG316 Coaxial Cable

RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG213/RG214/RG223/RG316/RG316-DS/RG400/RG402/RG405/RG58/U

RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications

If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling us
