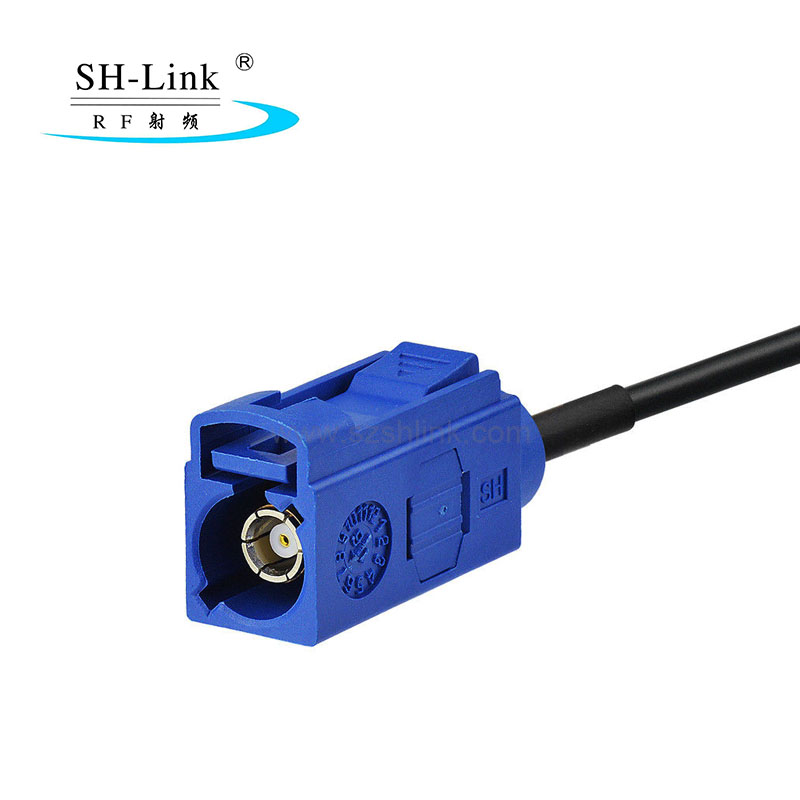

Fakra jack C type to Fakra jack C type with RG316 cable is widely used in automotive electronics, RF
test and measurement, network communication and IoT, and consumer electronics/smart
home (external antenna connection for high-end wireless devices and smart security cameras).

Connector operating frequency: DC to 6GHz;
Impedance: 50 ohms.
Operating temperature: -40℃～+85℃

Fakra Female Connector materials:

1. Body: Nickel-plated brass;

2.  Insulator: PTFE;

3. Center pin: Gold-plated beryllium copper;

4. Copper tube: Nickel-plated brass;

5. Snap ring: Beryllium copper;

6. Outer shell: PA66+30%GF;

7. Snap ring: PA66+30%GF;

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each model
corresponds to a different color,and different models are incompatible.

We offer high-quality, high-volume production services. We also offer custom lengths
and sizes at reasonable prices, ensuring safety and reliability. Inquiries are
welcome.
