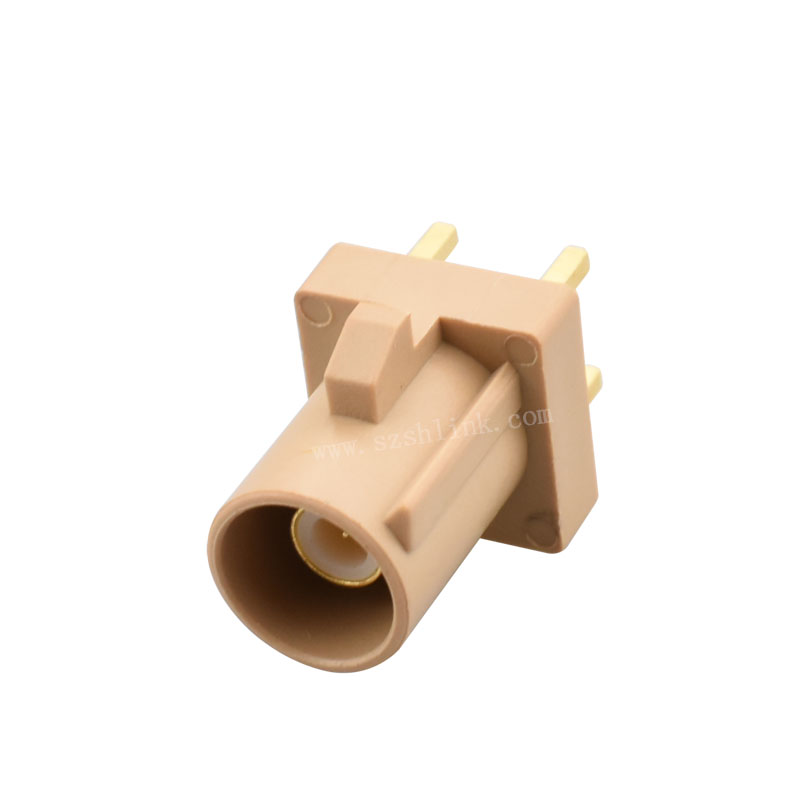

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 3 GHz and meet the particular mechanical and environmental requirements of the automotive industry.FAKRA connectors are used in Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Infotainment Systems.
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
• The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Crimp ferrule: brass, Ni-plated
• Technical characteristics
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Center contact: ≤ 20m
Outer contact: ≤10m
VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
