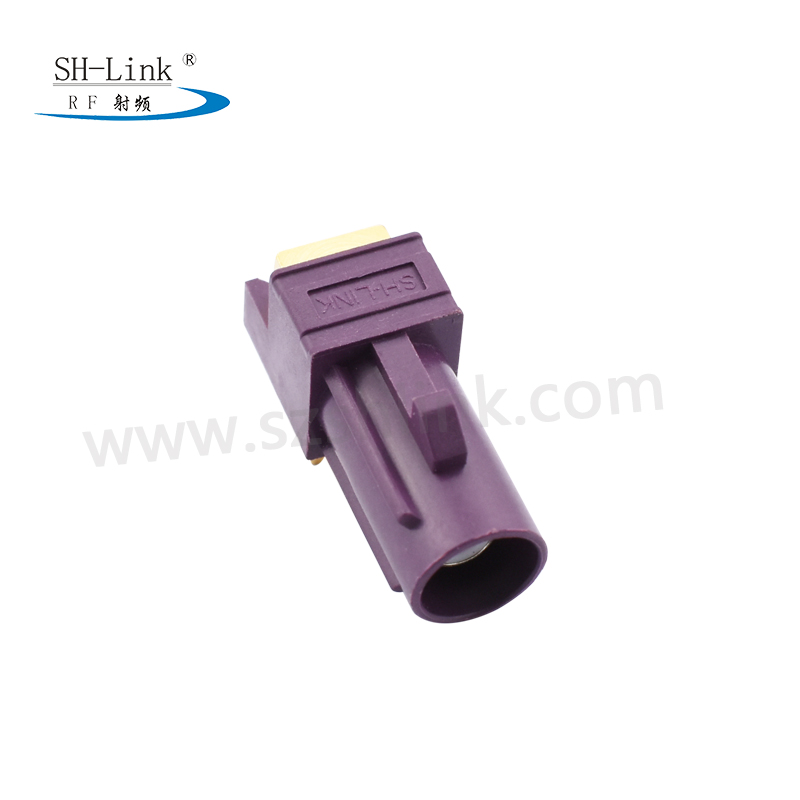

FAKRA SMB-50JWE-10 D Bordeaux-violet
FAKRA Connectors
| • The product technical characteristics: | |
| Body: | Brass, Ni-plated |
| Socket: | beryllium-copper, Gold-plated |
| Pin contact: | Brass |
| Insulator: | PTFE |
| Crimp ferrule: | brass, Ni-plated |
| O-ring: | beryllium-copper |
| Shell: | PA66+30%GF |
| • Technical characteristics | |
| Impedance: | 50Ω |
| Frequency Range: | 4GHz |
| Withstanding Voltage: | 1000V(RMS) |
| Contact resistance: | Center contact: ≤ 20m Outer contact: ≤10m |
| Insulation: | ≥1,000MΩ |
| VSWR: | DC - 2GHz<1.2 |
| • Mechanical characteristics: | |
| Assembly: | locked |
| Durability: | ≥ 500 cycles |
| Temperature: | - 40 - +85°C |
fakra Car connector
The product volume is small, the weight is light, the connection is convenient and reliable
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote
control, car phone, car TV, hi-fi equipment, antennas, etc.
Can be customized to the drawing sample processing, welcome to consult
