SMA Male Connector (90°) | SH-Link

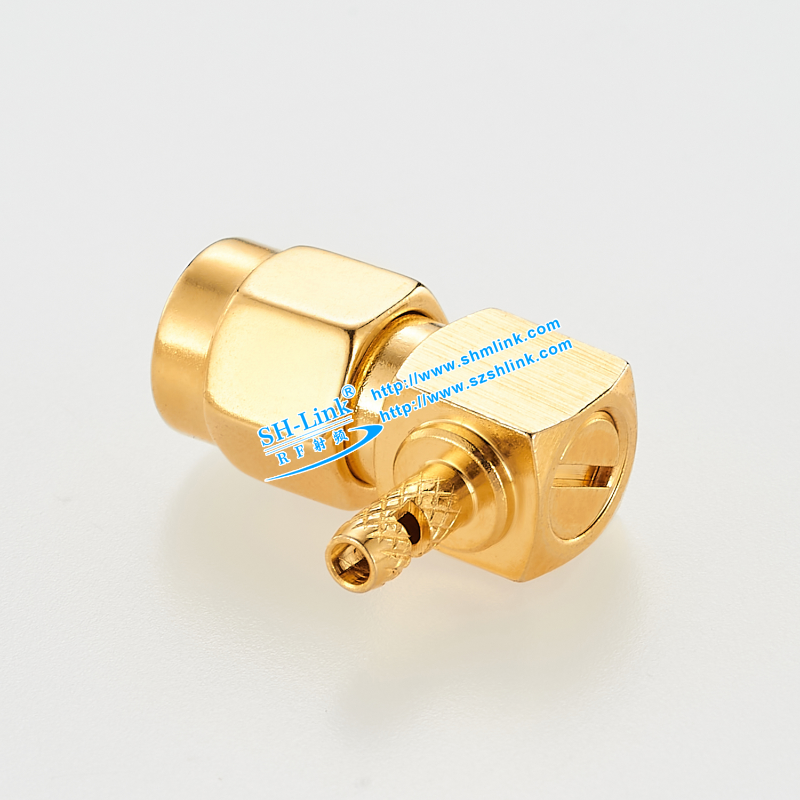

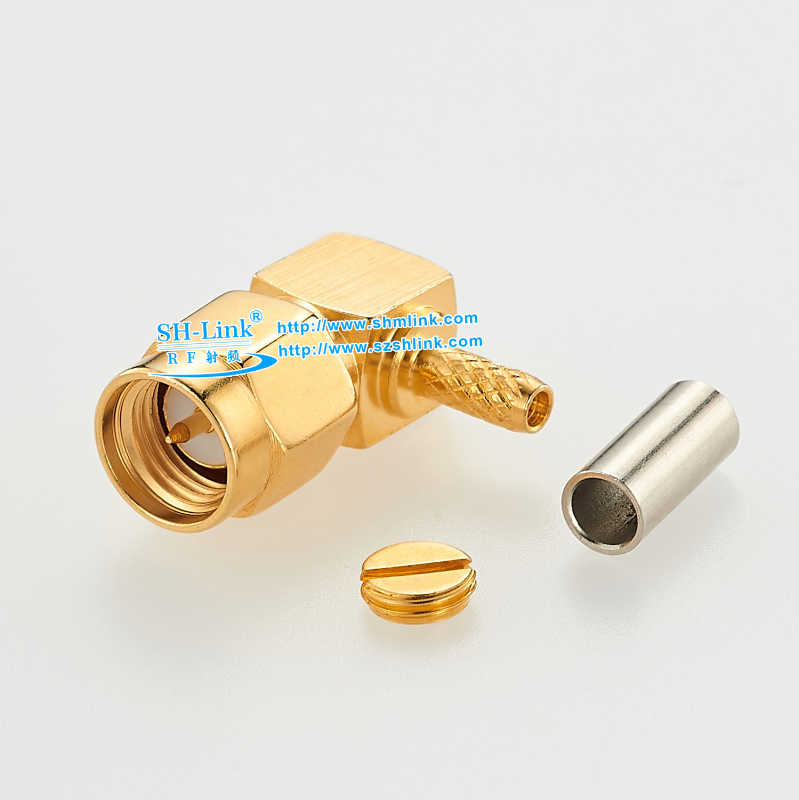

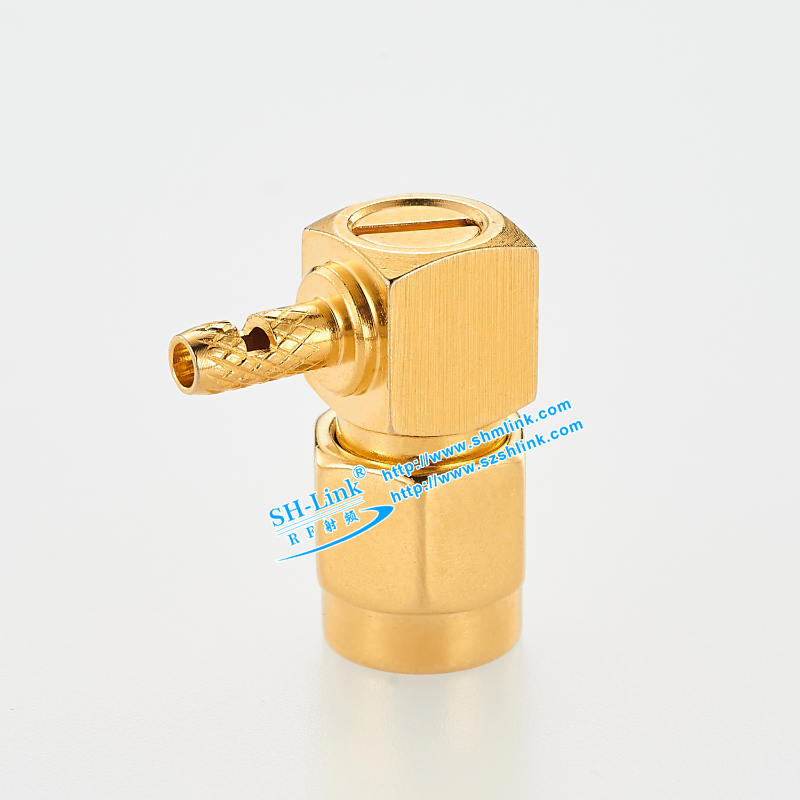

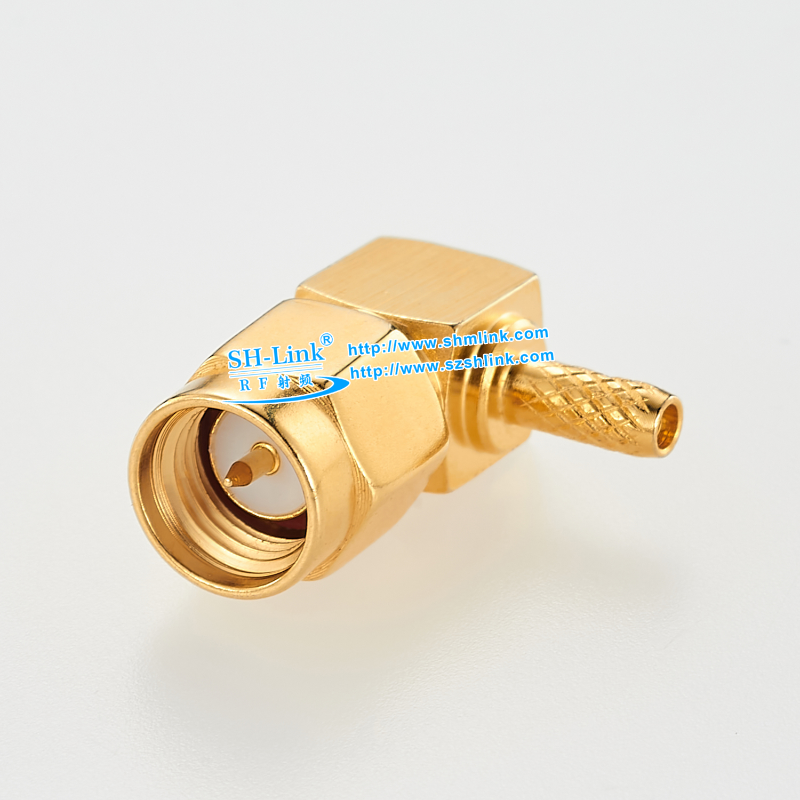

The SMA right-angle male connector is a common 50Ω RF coaxial connector featuring a 90-degree bend design. One end is designed to connect to an RF coaxial cable via crimping or soldering, while the other end serves as an SMA male interface (characterized by external threads and an internal pin) that secures to an SMA female connector via a threaded coupling mechanism. Thanks to its compact size, excellent high-frequency performance, and reliable connection characteristics, this connector is widely used for routing RF signals around corners, effectively addressing challenges related to limited internal space and the need to alter signal transmission paths.

Frequency: DC–3 GHz; Impedance: 50 Ω

Materials:
Body: Gold-plated brass
Center pin: Gold-plated brass
Insulator: PTFE (Polytetrafluoroethylene)
Coupling nut: Gold-plated brass
Gasket: Silicone rubber
Spring ring: Beryllium copper
Rear cap: Gold-plated brass
Crimp sleeve: Gold-plated brass
