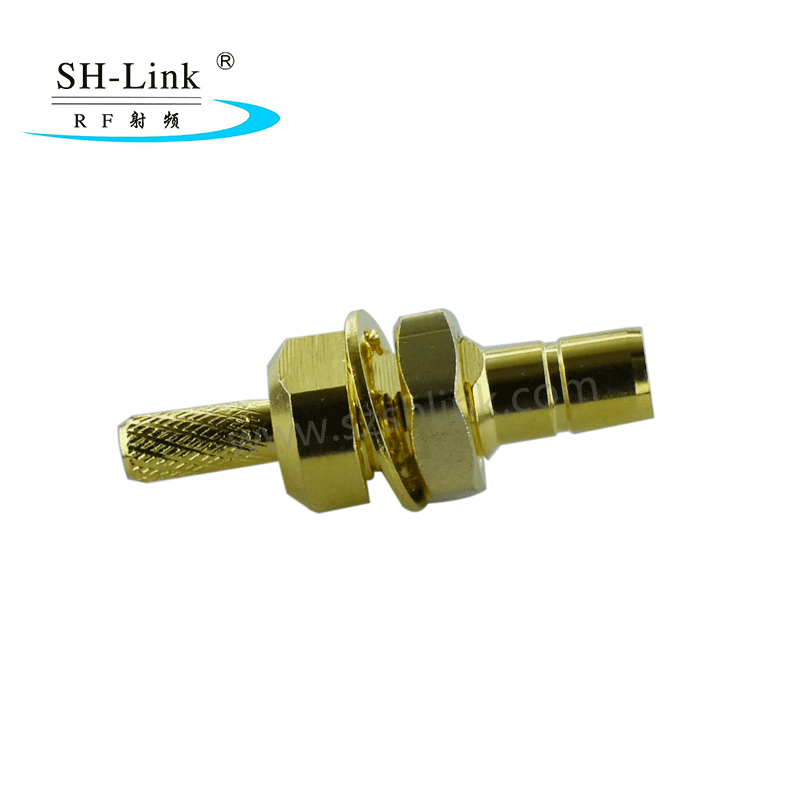

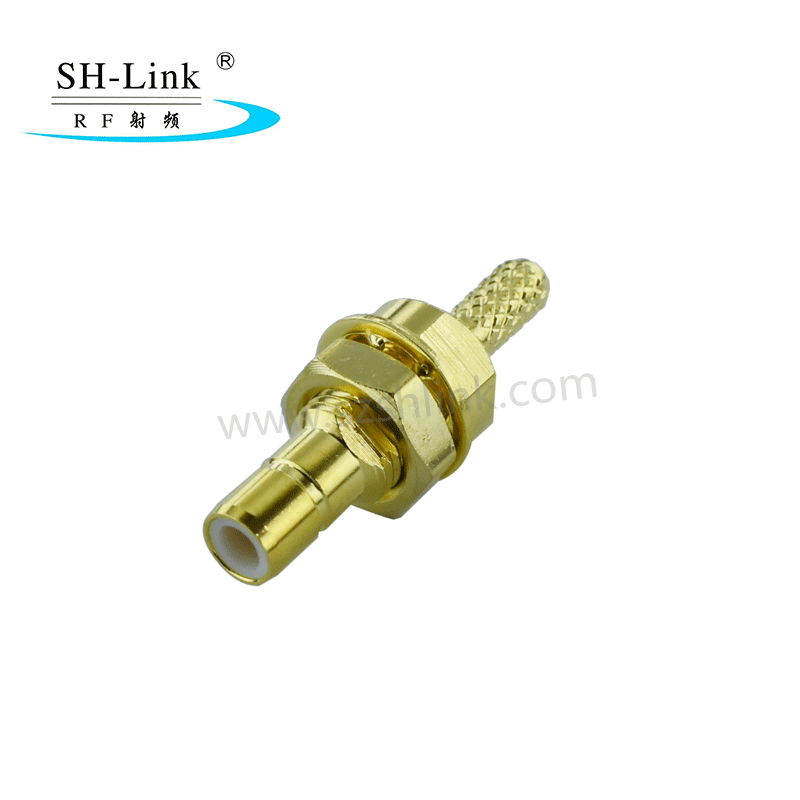

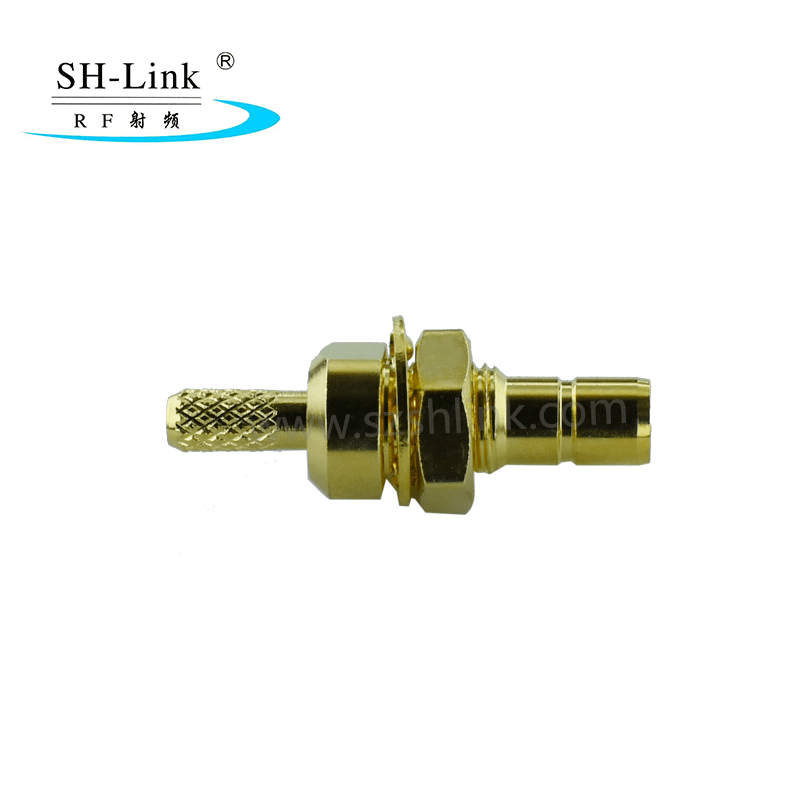

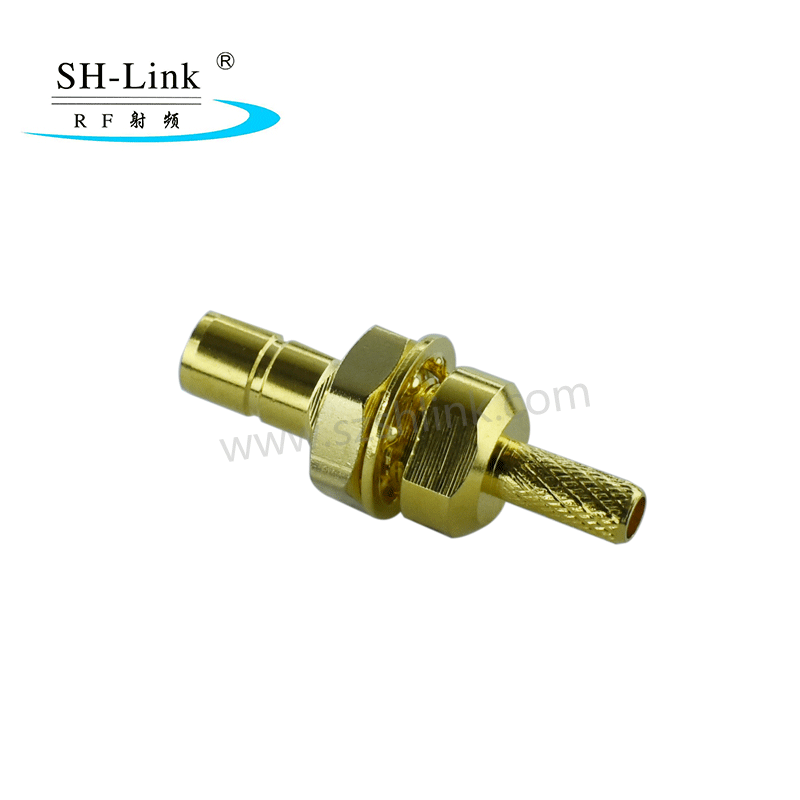

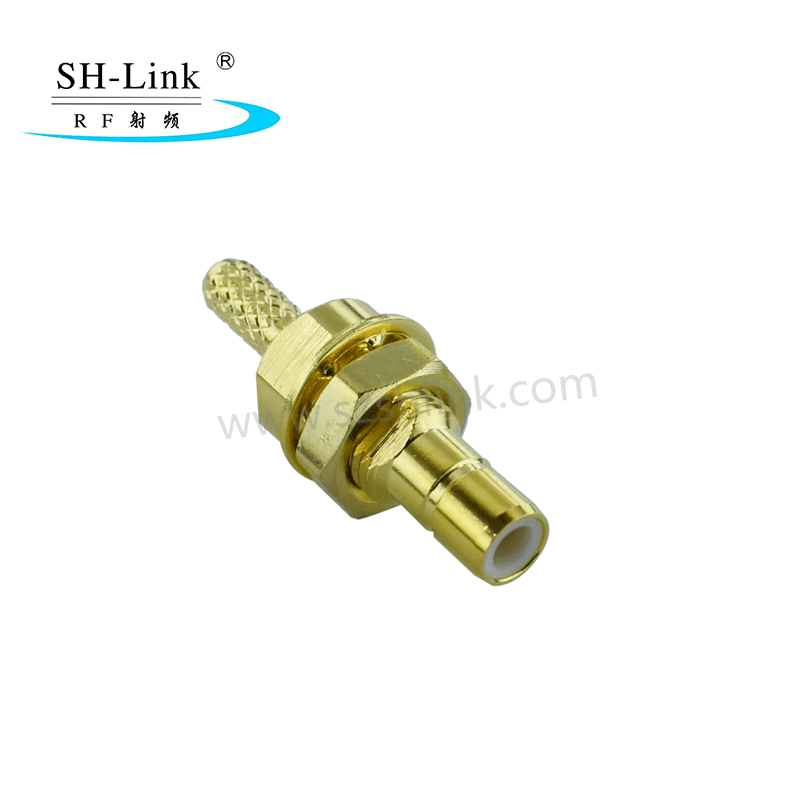

SMB公头接RG174线镀金
SMB射频连接器可以看作是带卡箍式连接结构的较小的版本SMA,SMB射频连接器设计于1960年。卡箍式设计允许在有限空间内的快速连接和断开。50欧姆SMB通常工作于4 GHz频率范围,75欧姆SMB射频连接器只能工作于最高2GHz频率。SMB射频连接器被普遍用于通信、汽车、GPS定位、GSM移动通信、无线局域网设备等。

Product Description

SMB RF coaxial connectors are characterized by their small size, light weight, excellent electrical
performance, and ease of use. They are suitable for connecting RF cables in radio communications,
testing instruments, meters, radio and television station base stations, and microwave systems.


The connector is compatible with RG-174 and RG-316 cables.

Frequency range: DC-4GHz(50Ω); DC-2GHz(75Ω);
Impedance: 50 ohms,75ohms;
Temperature resistance: -40℃~+85℃


 Connector Materials:
body: Gold-plated brass;
Center pin: Gold-plated brass;

Insulator: PTFE;
Washer:Gold-plated brass;
Nut:Gold-plated brass;
Copper tube: Nickel-plated brass


We offer high-quality, high-volume production. We offer custom lengths and sizes at competitive
prices, ensuring reliable and secure operation.
