FAKRA connectors are widely used in automotive, GPS, satellite broadcasting, Bluetooth, and in-vehicle
infotainment systems.

This connector is compatible with RG174, RG316, RG58, LMR200, and LMR240 cables.

Connector operating frequency: DC to 6GHz; Impedance: 50 ohms. Operating temperature: -40℃～+85℃

1. Body: Nickel-plated brass;

2. Insulator: PTFE;

3. Center pin: Gold-plated beryllium copper;

4. Copper tube: Nickel-plated brass;

5. Snap ring: Beryllium copper;

6. Outer shell: PA66+30%GF;

7. Snap ring: PA66+30%GF;

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each model
corresponds to a different color,and different models are incompatible.

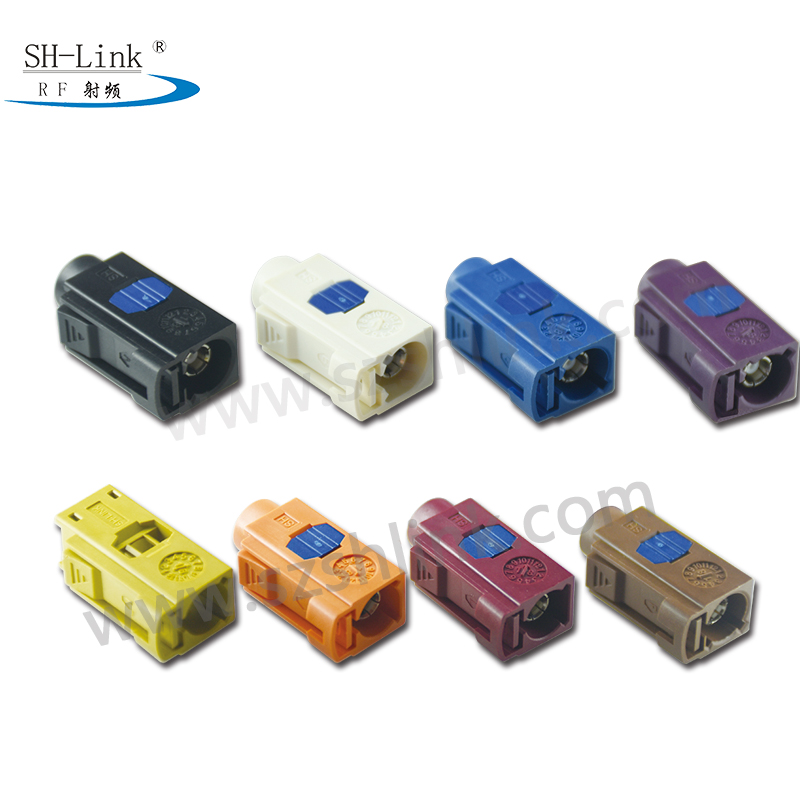

The product shown in the picture is Type B. We offer high-quality, high-volume production services. We
also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are
welcome.

                                                 FAKRA Female Connectors(Long)


   Can be customized to the drawing sample processing, welcome to consult

              Leading technology, professional team supply is guaranteed

Application in medical electronic automobile electronic communication and so on
