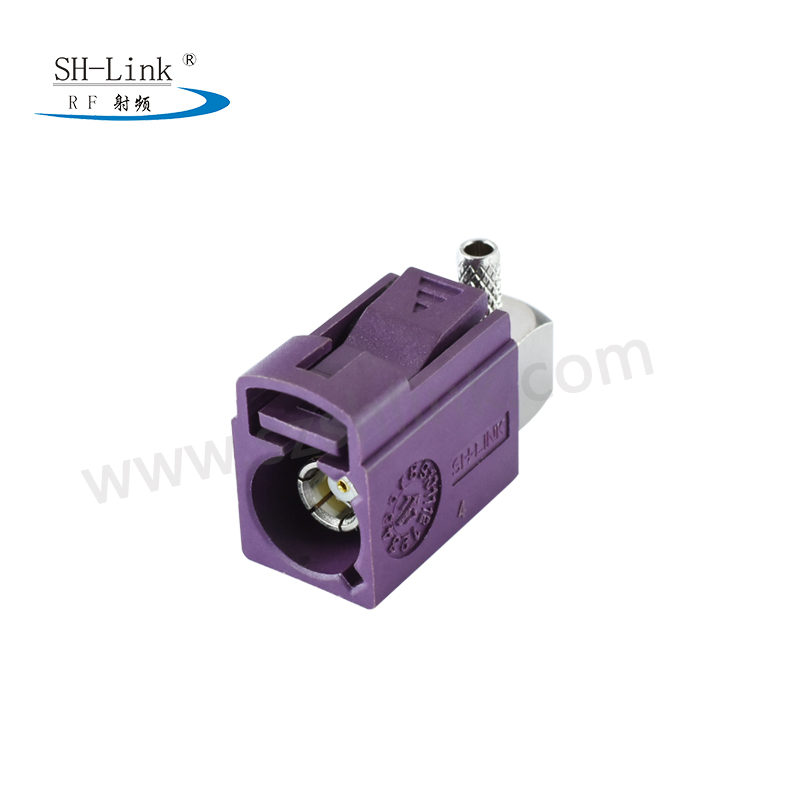

FAKRA SMB-C-KW1.5-2 D Bordeaux-violet

• The product technical characteristics:
   Body: Brass, Ni-plated
   Socket:  beryllium-copper, Gold-plated
   Pin contact:  Brass
   Insulator:  PTFE
   Crimp ferrule:  brass, Ni-plated
   O-ring:  beryllium-copper
   Shell:  PA66+30%GF
• Technical characteristics
   Impedance:  50Ω
   Frequency Range:  4GHz
   Withstanding Voltage:  1000V(RMS)
   Contact resistance: Center contact: ≤ 20m         Outer contact: ≤10m
   Insulation: ≥1,000MΩ
   VSWR:  DC - 2GHz<1.2
• Mechanical characteristics:
  Assembly: locked
  Durability:  ≥ 500 cycles
  Temperature:  - 40 - +85°C

                              Fakra D  Female R/A Fakra D  Female Cable Assemblies

           FAKRA connector is one  of the auto  parts. They are widely used in GPS,  Remote
control ,  car  phone ,  car  TV,  hi-fi  equipment , antennas, etc. It is mate  with the  same
colors  or  connector  and  socket  ,  and  the  structure  is  to  be  double-locked  and
fool-proofing for them.
             FAKRA  connectors  are  SMB  based  automotive - grade . These connectors are
embedded within a plastic housing with a locking  feature  that  has  an  audible  clicking

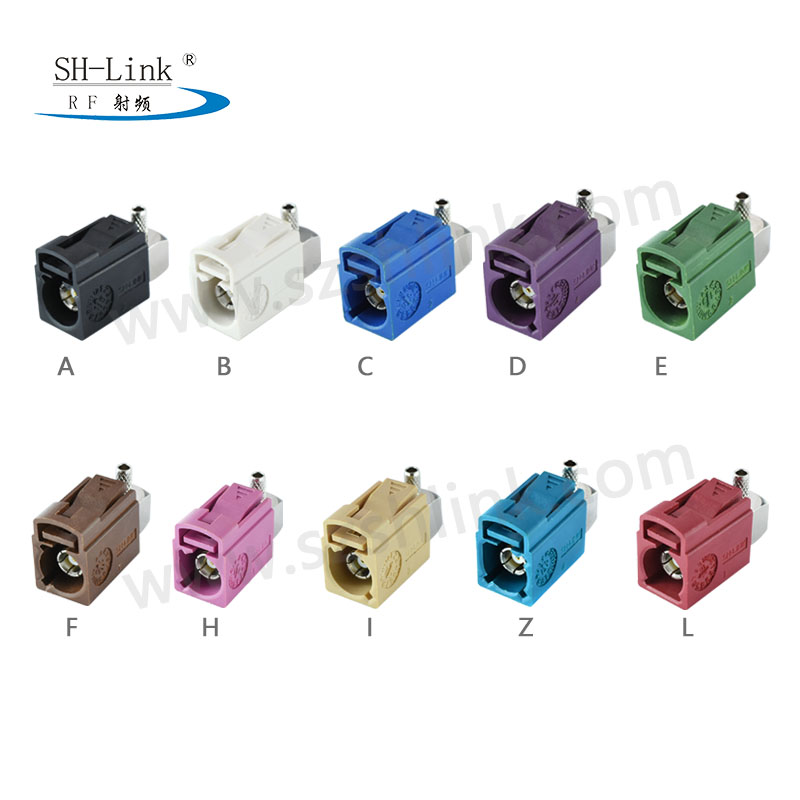

noise which lets you know a connection has been made.They are available in 14 different
mechanical  layouts   which  are  color  coded  for  easy  identification and mis- matching
prevention.


            FAKRA  connectors  They can be  used  in  for  to  make   various connections  in
automotive  vehicles ,  applications  includ  SDARS ,  Cellular , GPS  Navigation ,  key-less
entry and satellite radio.
              Shenzhen  Sihanming  technology  Co., LTD  (Shenzhen  Sihan  Communication
Technology)was established in 2006,located in the 4th Industrial Park, Fenghuang Village,
Baoan District,
Shenzhen City. Our company occupies 4000 square meters.There are more
than 100 employees,
20% of them are engineers and technicians. We are professional in
designing,
developing,producing and sale of radio frequency coaxial connectors.With the
advanced producing
and inspection equipment, strong technology,perfect process flow.
We have
got certifications of ISO9001 and IATF16949.



































  • *
  • *
