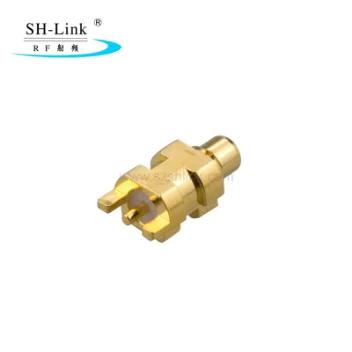

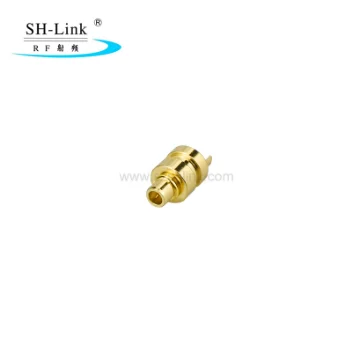

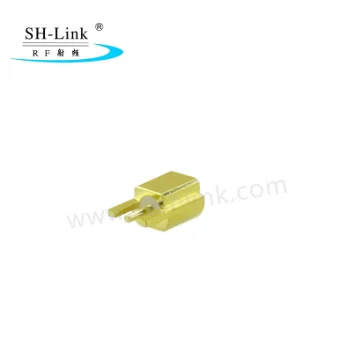

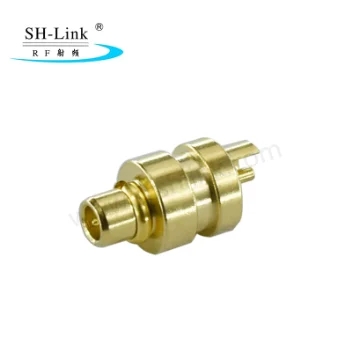

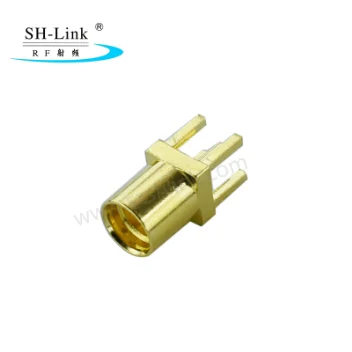

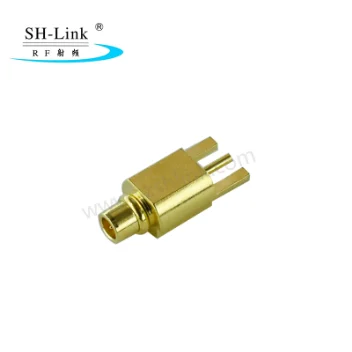

oem mmcx rf connector for earphone , mmcx rf connector factory

Type MMCX RF Coaxial Connector is a Kind of Microminiature Product Smaller than type MCX.Characteristic impedance is 50Ω.


The characteristic of connectors in Small Volume,Light weight,Convenient Connection and reliable.Thay are widely used in Connect with the RF Coaxial Cables,Transmission of RF signal,equipments or small-sized communications Network that are demanding on systematic volume and weight.By using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assembly line.

MMCX


Impedance: 50 Ω


Temperature Range: -55~+155 oC(PE cable -40~+85oC )


Frequency Range: DC~6GHz( Semi-rigid cable DC~6GHz)


Working Voltage: 170Vr.m.s (50Ω) at sea level


Withstanding Voltage: 500V(50Ω) r.m.s at sea level



Contact resistance:



Center contact ≤5 mΩ



Outer contact  ≤2.5mΩ


Insulation resistance : ≥ 1000 M Ω



Center conductor retention force ≥0.28N


Insertion Loss: 0.18dB/1GHz



Engagement force ≤ 15N



Disengagement force ≥6N



Voltage standing wave ratio



                                        straight       ≤1.25/3GHz

                                        Right angle  ≤1.43/3GHz



Durability(mating) ≥500 (cycles)


Insulator: PTFE


Body: brass & gold plated


Pin contact: brass &  gold plated


Socket contact;  beryllium-copper & gold plated.


Crimp ferrule: copper alloy &  nickel or gold plated


o-ring  sealing :  6146  sllicone rubber.

  • *
  • *
