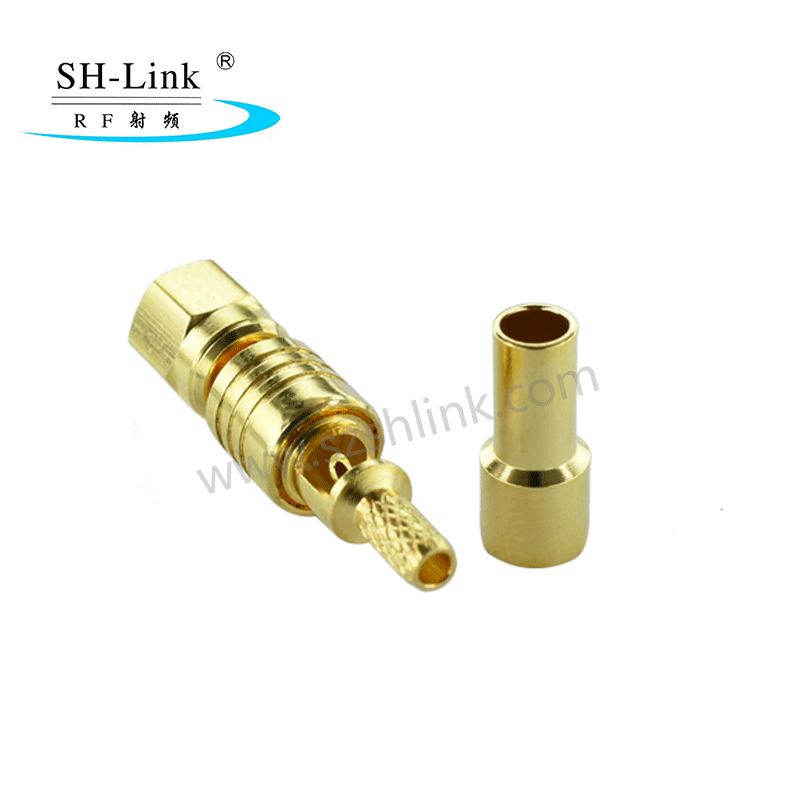

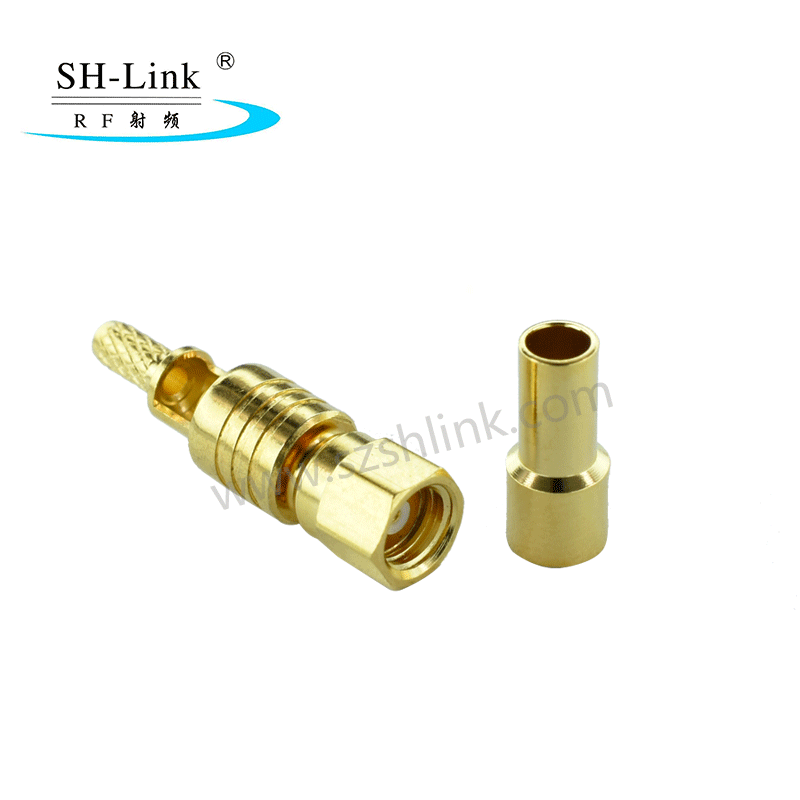

RF SMC coaxial female connector for RG316 RG174 cable, gold plating

TYPE SMC is one kind of miniature RF coaxial connectors which adds the thread connection form on the basis of SMB. Characteristic impedance is 50ohm. The characteristic of connectors is in small volume,light weight,reliable connection, great vibration performance.They are used in connecting RF coaxial cable in radio equipments and instruments.

Temperature range -55—+155℃(PE Cable   -40—+85℃)
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 335V r.m.s at sea level
Withstanding voltage 1000V r.m.s at sea level
Contact resistance
Center contact ≤6mΩ
 Outer contact ≤2.5mΩ
Insulation resistance 5000MΩ
Center conductor retention force ≥0.28N
Insertion loss ≤0.24dB/6GHz
Voltage Standing Wave Ratio
Straight ≤1.30/3GHz
Right angle ≤1.45/3GHz
Durability(mating) ≥500次(Cycles)


  • *
  • *
