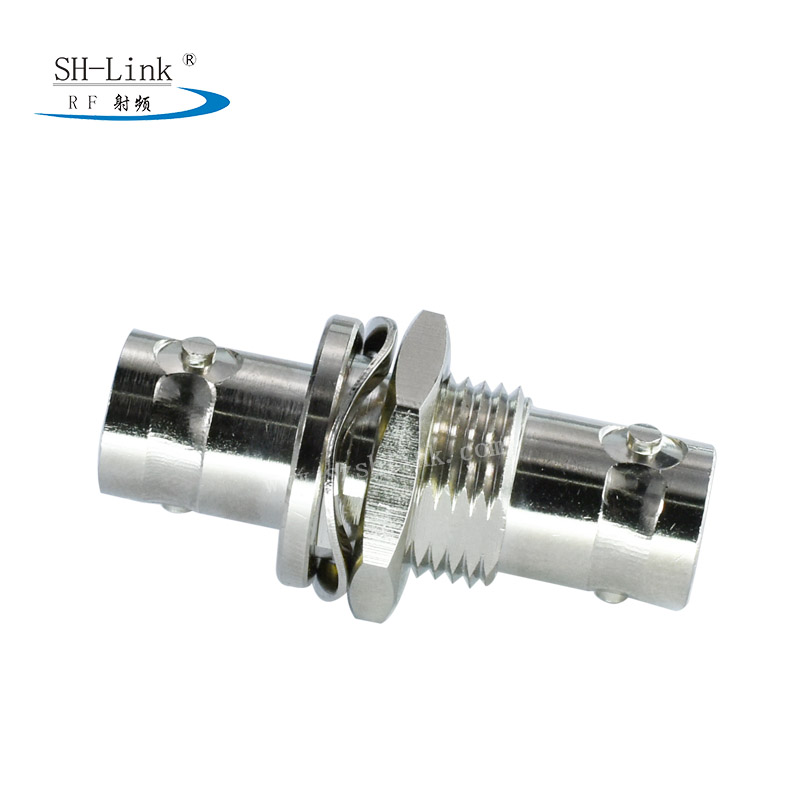

50Ω BNC Straight bulkhead Female to female adapter

BNC CONNECTOR
Working Voltage: 500V r.m.s
Temperature Range: -55℃~+125℃
Frequency Range: DC-2GHz
Impedance: 50Ω
Contact Resistance: Center Contact≤1.5mΩ                 Outer Contact≤1mΩ
Insulation Resistance: ≥5000MΩ
Medium Pressure: 1500V
Shell Retention: ≥0.57N
Environment temperature: -55℃~+155℃(PE Cable-40℃~+85℃)
Salt Fog: >48H


  • *
  • *
