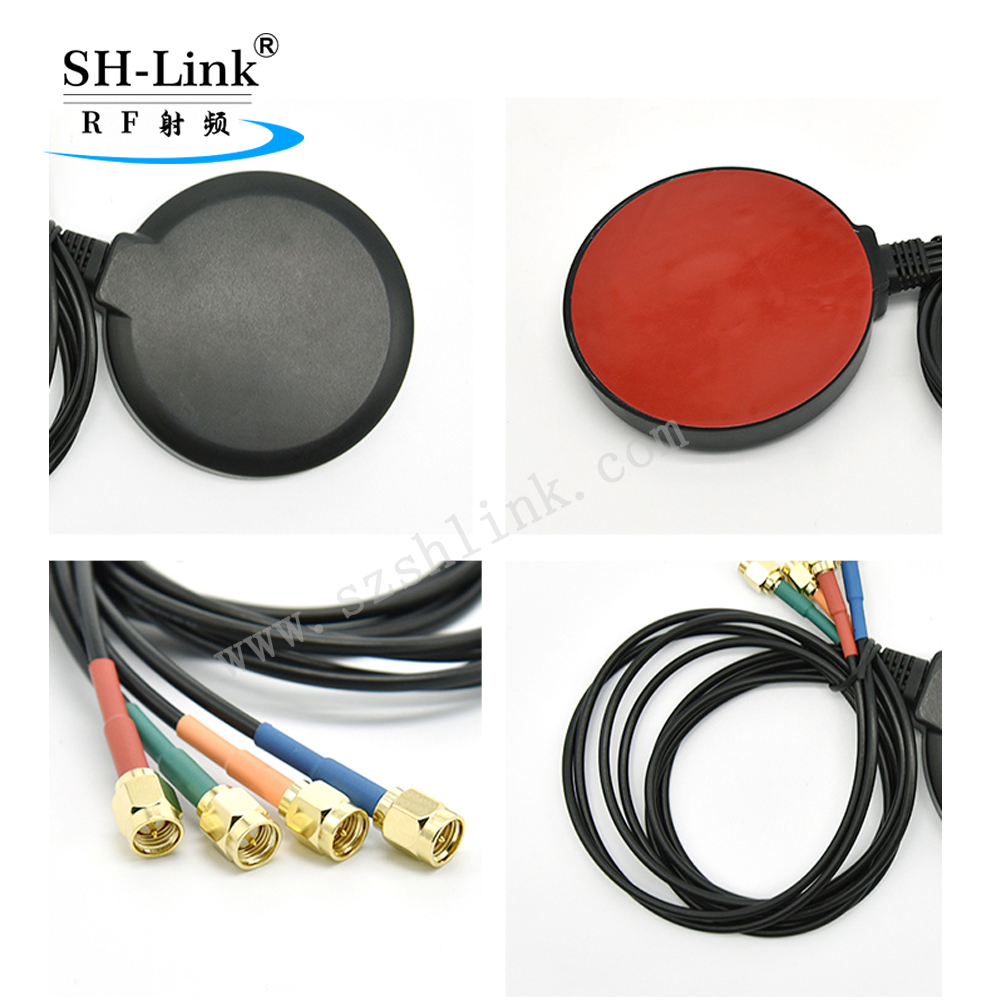

This antenna is suitable for smart cars, industrial IoT terminals, smart devices, and other scenarios,
providing comprehensive RF signal support.

Impedance: 50Ω

Interface: SMA inner pin

I. Frequency Band Coverage:

4G Main Antenna: 690-960MHz, 1710-2690MHz

4G Secondary Antenna: 1710-2690MHz

Bluetooth/WiFi: 2400-2500MHz (WiFi 2.4G), 5150-5850MHz (WiFi 5G)

GNSS: 1561MHz (GPS L1), 1575.42MHz (BeiDou B1)

II. GNSS Low Noise Amplifier (LNA) Performance

Frequency Range: 1560-1602MHz

Gain: 28±3 dB

Noise Figure: Typical 2.0 dB

Output VSWR: ≤2.0

Operating Voltage: 3.3-5 V

Operating Current: 10-25 mA
We offer high-quality, high-volume production. We also offer custom lengths and sizes at
reasonable prices, ensuring safety and reliability. Inquiries are welcome.
