The primary function of this RF cable harness is the routing and testing of automotive RF signals. It is predominantly utilized in laboratory spectrum analysis, antenna debugging for new vehicle models, and functional/burn-in testing on production lines. Capable of facilitating multi-channel antenna signal expansion, it is also ideally suited for applications involving V2X testing in intelligent connected vehicles, as well as in-vehicle security and emergency communication systems. Compatible with RG174 cabling.

The RG174 cable features an operating frequency range of DC to 6 GHz, an impedance of 50 ohms, and an outer diameter of 2.8 mm.

Mini Fakra Connector Materials:

Body: Brass, Nickel-plated

Center Pin: Beryllium Copper, Gold-plated

Retaining Ring: PA66

Housing: PA66

Insulator: PTFE

Crimp Sleeve: Brass, Nickel-plated

Insulator: PTFE

SMA Female Connector Materials:

Body: Brass, Gold-plated

Center Pin: Phosphor Bronze, Gold-plated

Crimp Sleeve: Brass, Nickel-plated

Coupling Nut: Brass, Gold-plated

Gasket: Silicone

Spring Washer: Phosphor Bronze, Gold-plated

Lock Washer: Phosphor Bronze, Gold-plated

The Mini Fakra connector series comprises a total of seven distinct types: A, B, C, D, E, F, and Z. Each type corresponds to a specific color code; crucially, the mechanical structures of the different types are mutually incompatible—a design feature that effectively prevents connection errors caused by accidental mismating.

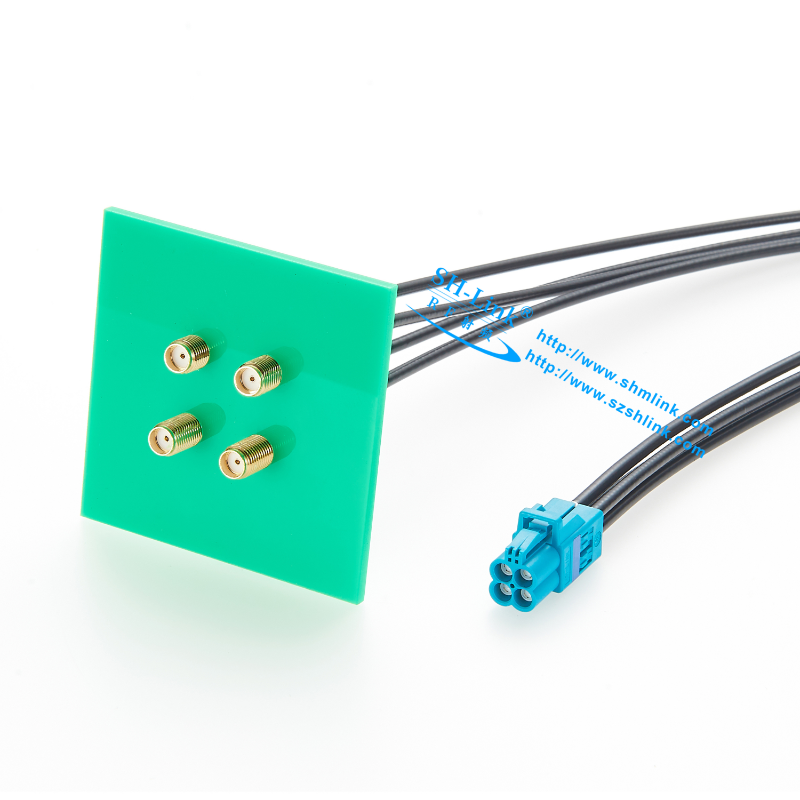

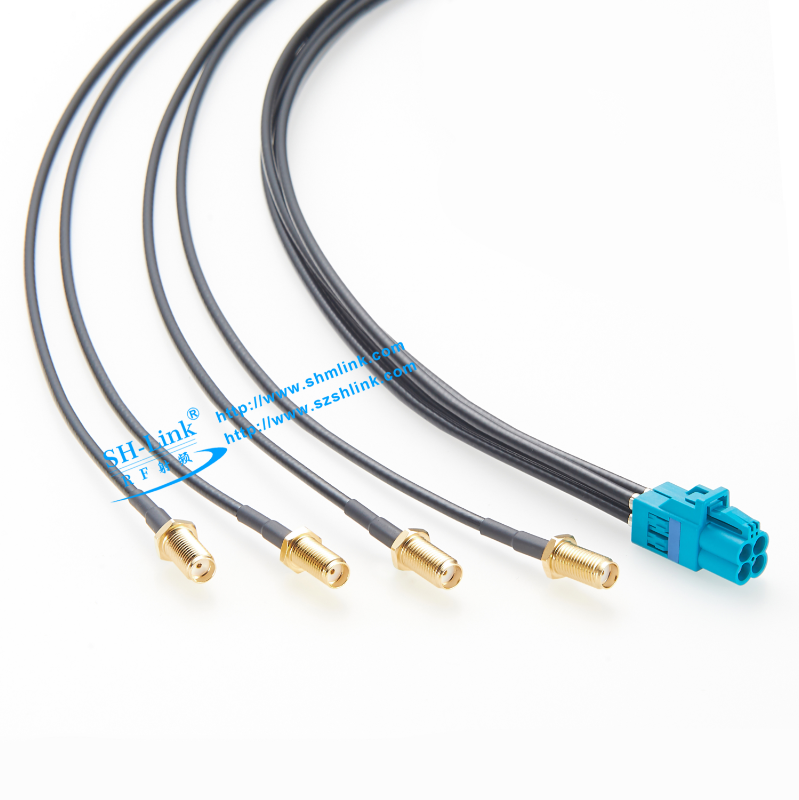

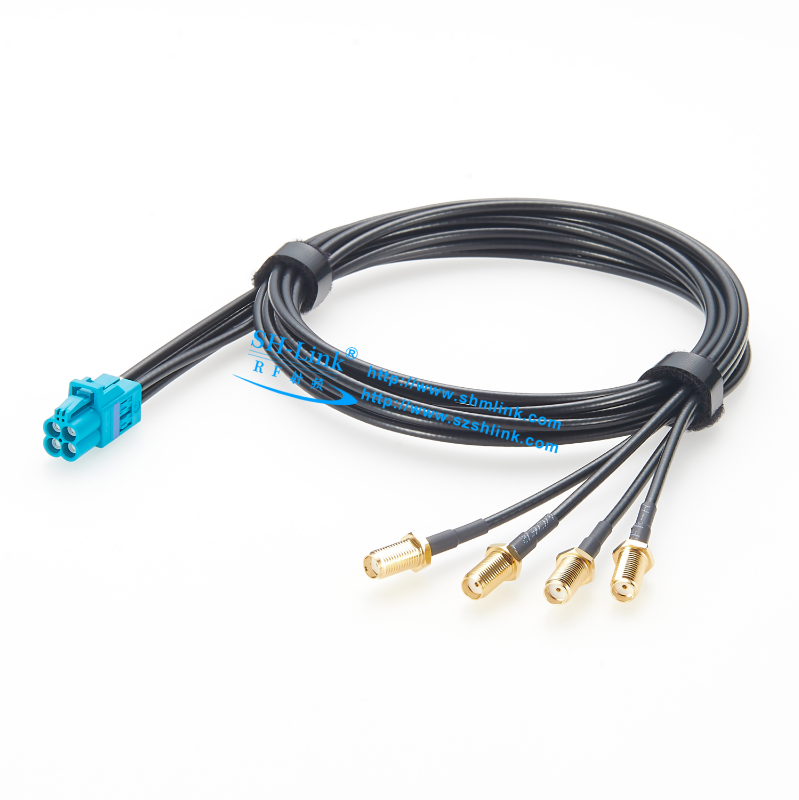

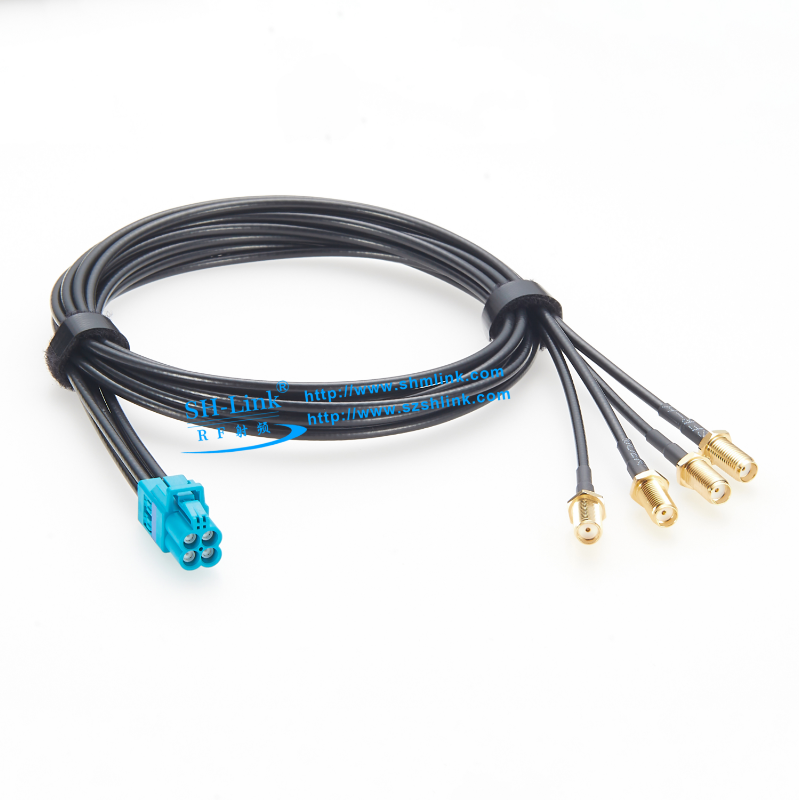

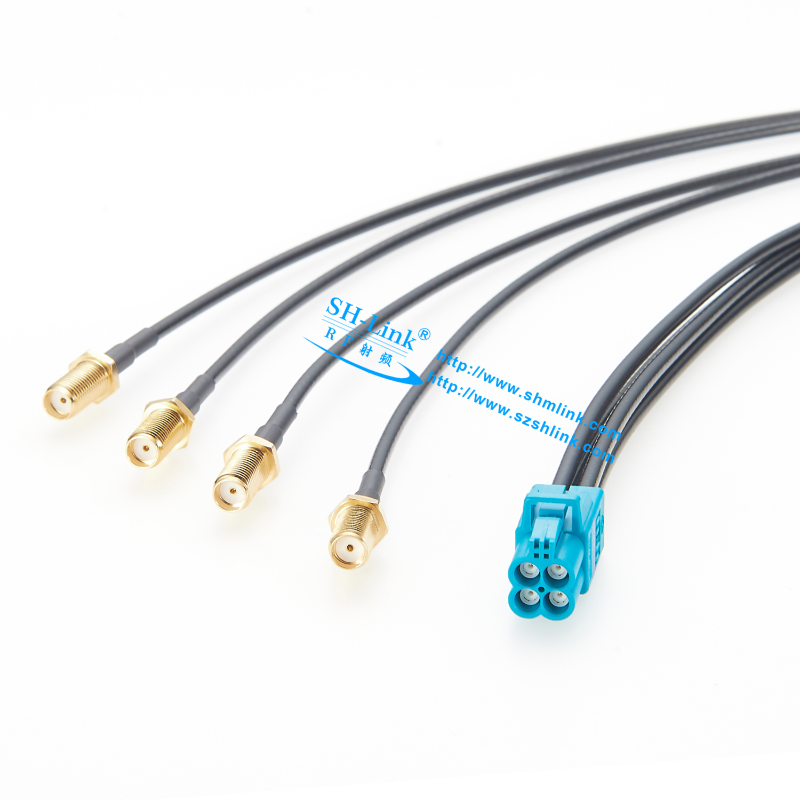

The product displayed here is the Type Z connector. We possess robust capabilities for the high-quality, mass production of this connector. Furthermore, we offer customization services for cable lengths and dimensions at highly competitive prices, while simultaneously guaranteeing the utmost safety and reliability of our products. Inquiries are welcome.
