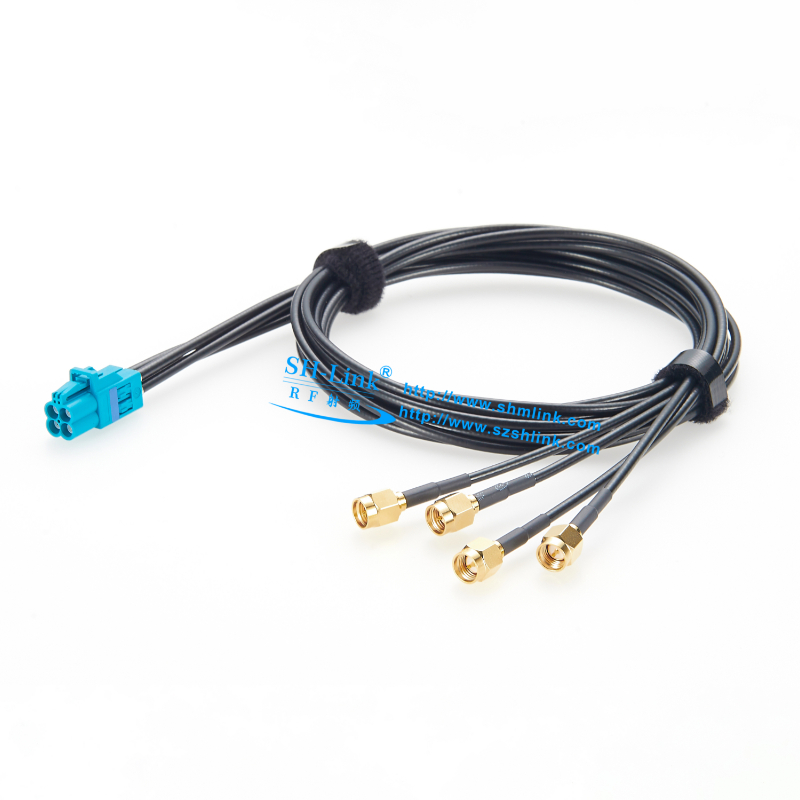

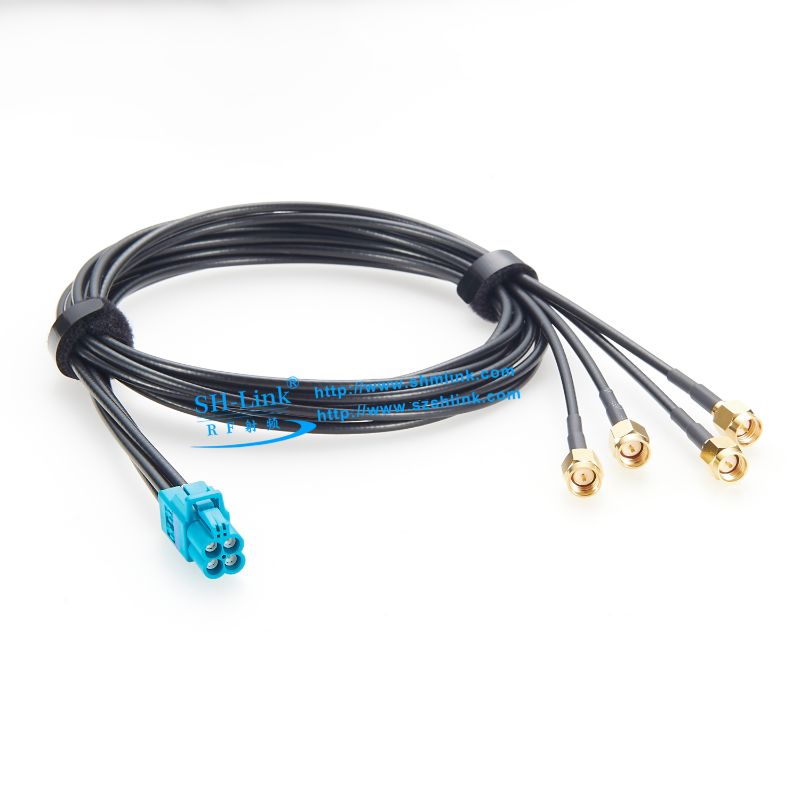

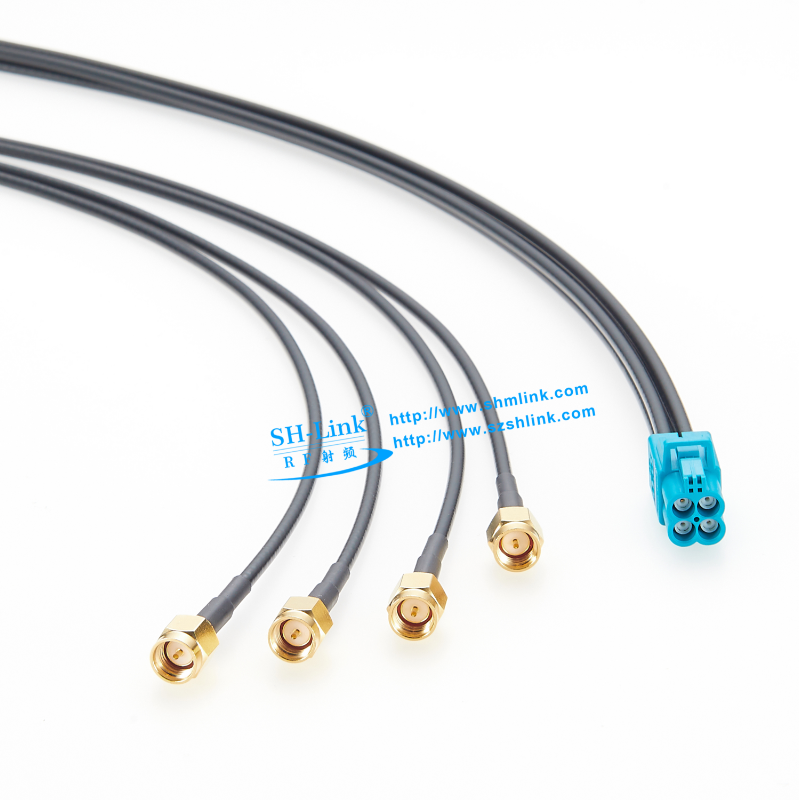

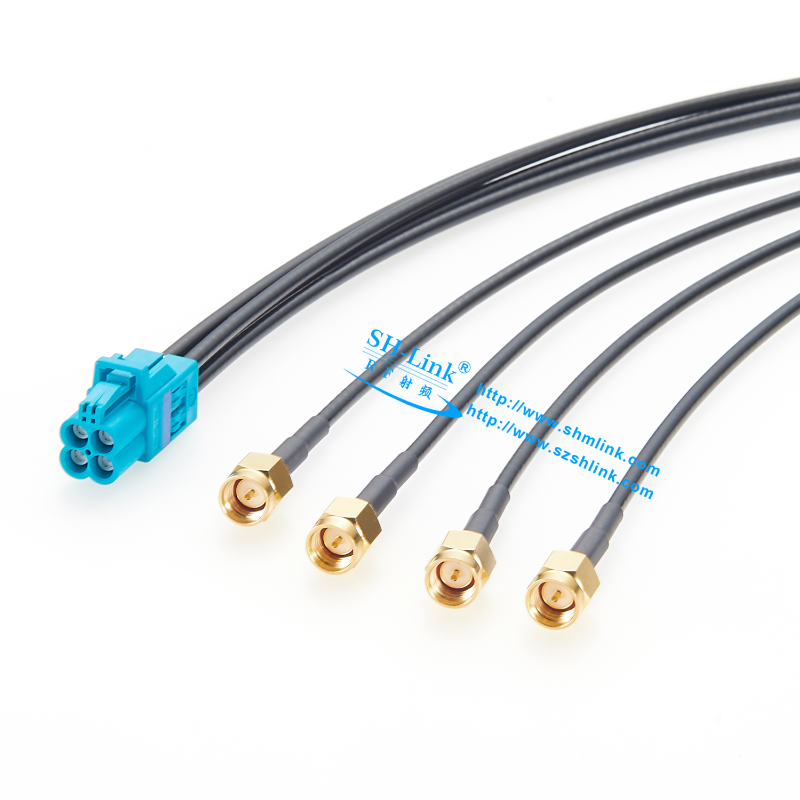

High-Quality GPS/GNSS Mini Fakra 4-in-1 Connector Manufacturer | SH-Link

Description:This cable assembly is primarily designed for laboratory spectrum analysis, antenna debugging for new vehicle models, and functional/burn-in testing on production lines. It is fully compatible with original vehicle FAKRA antenna systems, enabling the expansion of multi-channel antenna signals. Additionally, it is well-suited for applications such as V2X testing in intelligent connected vehicles, as well as in-vehicle security and emergency communication systems. It is designed for use with RG174 coaxial cable

The RG174 cable features an operating frequency range of DC to 6 GHz, an impedance of 50 ohms, and an outer diameter of 2.8 mm.

MINI FAKRA Connector Materials:

Body: Brass, Nickel-plated

Center Pin: Beryllium Copper, Gold-plated

Retaining Ring: PA66

Housing: PA66

Insulator: PTFE

Ferrule: Brass, Nickel-plated

Insulator: PTFE

SMA Connector Materials:

Body: Brass, Gold-plated

Center Pin: Brass, Gold-plated

Ferrule: Brass, Nickel-plated

Coupling Nut: Brass, Gold-plated

Gasket: Silica Gel

Spring Washer: Beryllium Copper

The MINI FAKRA connector series comprises a total of 7 distinct types: A, B, C, D, E, F, and Z. Each type corresponds to a specific color code; crucially, the mechanical structures of the different types are mutually incompatible—a design feature that effectively prevents connection errors caused by accidental mis-mating.

The product displayed here is the Type Z connector. We possess robust capabilities for the high-quality, mass production of this connector. Furthermore, we offer customization services for cable lengths and dimensions at highly competitive prices, while ensuring the utmost safety and reliability of our products. Inquiries are welcome.
