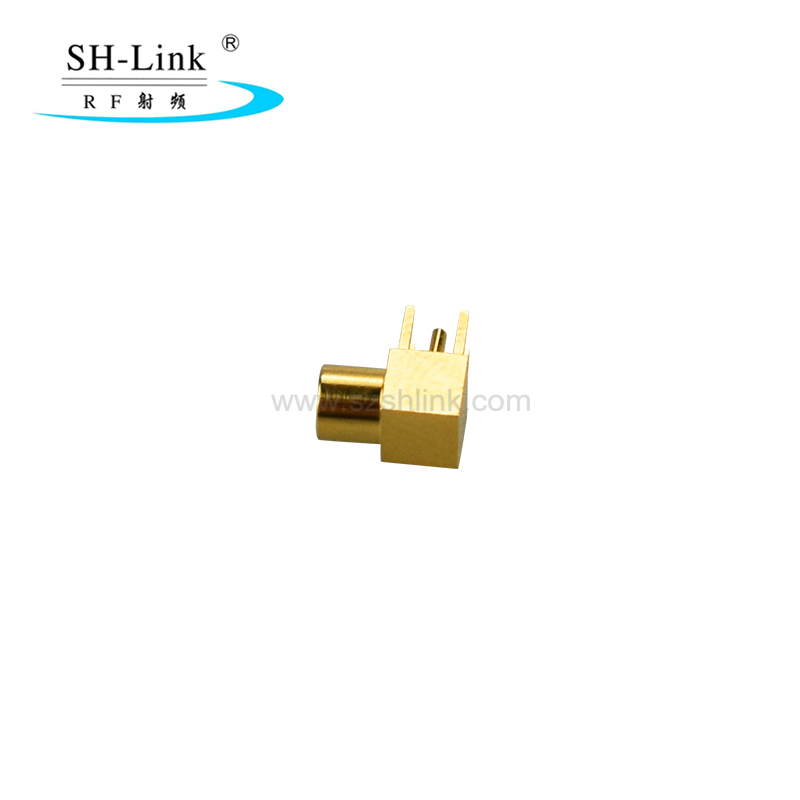

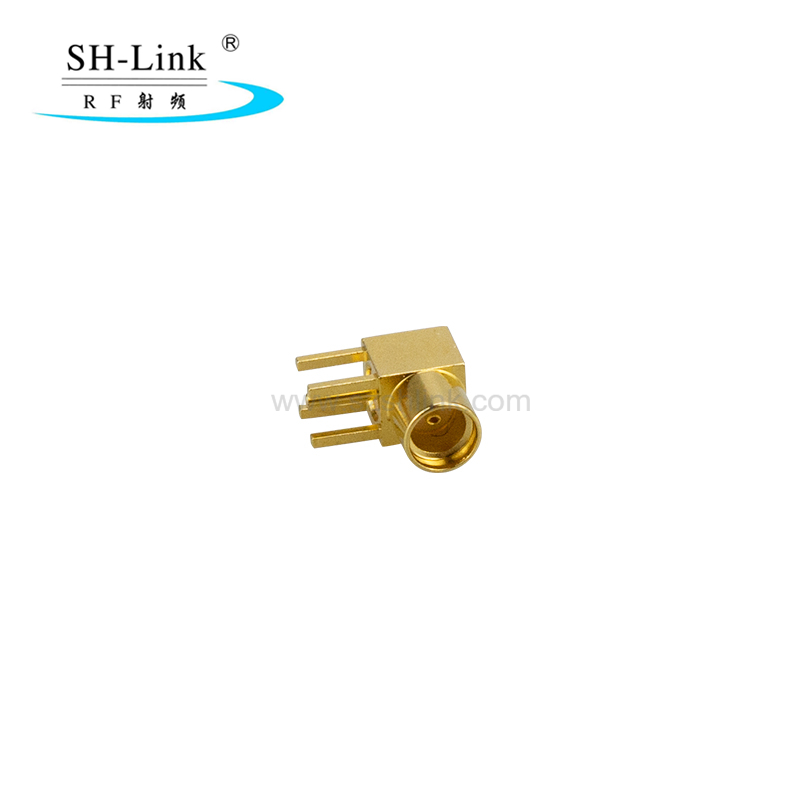

MCX-KWE-3

MCX connectors are suitable for Global Positioning System (GPS), digital PCN, various radio instruments,
meters, small electronic devices, and wireless network (WLAN) systems.



Frequency range: DC-3 GHz,
Impedance: 50 ohms,
Temperature resistance: -55°C-＋125°C,


 Connector Materials:
Insulator: PTFE
Body: Brass plated with gold
Center Pin: Beryllium copper plated with gold,


We offer high-quality, high-volume production. We offer custom lengths and sizes at competitive
prices, ensuring reliable and secure operation.

Temperature range -55—+125℃（PE Cable   -40—+85℃）
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 250V(50Ω) 170V(75Ω) at sea level
Withstanding voltage 250V(50Ω) 170V(75Ω) at sea level
Contact resistance
内导体之间 Center contact ≤5mΩ
外导体之间 Outer contact ≤2.5mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤20N
Disengagement force ≥8N
Voltage Standing Wave Ratio
直式 Straight ≤1.20/1GHz
弯式 Right angle ≤1.45/1GHz
Durability(mating) ≥500次(Cycles)
  • *
  • *
