  • MCX-C-K1.5

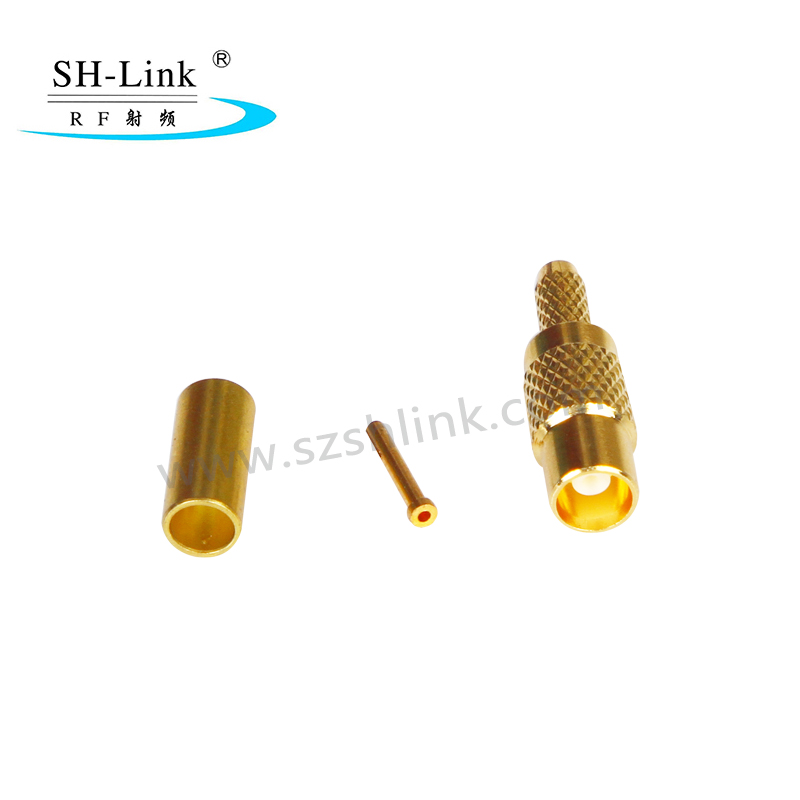

MCX-C-K1.5

TYPE MCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small volume、light weight、concise structure、easy to use.They are widely used in the Global Position System、Digital Personal Computer Network、all kinds of radio instruments、small-sized electronic equipments and WLAN system

Temperature range -55—+155℃(PE Cable   -40—+85℃)
Impedance 50Ω、75Ω
Frequency range DC-6GHz
Working voltage 250V(50Ω) 170V(75Ω) at sea level
Withstanding voltage 250V(50Ω) 170V(75Ω) at sea level
Contact resistance
内导体之间 Center contact ≤5mΩ
外导体之间 Outer contact ≤2.5mΩ
Insulation resistance 1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤20N
Disengagement force ≥8N
Voltage Standing Wave Ratio
直式 Straight ≤1.20/1GHz
弯式 Right angle ≤1.45/1GHz
Durability(mating) ≥500次(Cycles)
  • *
  • *
