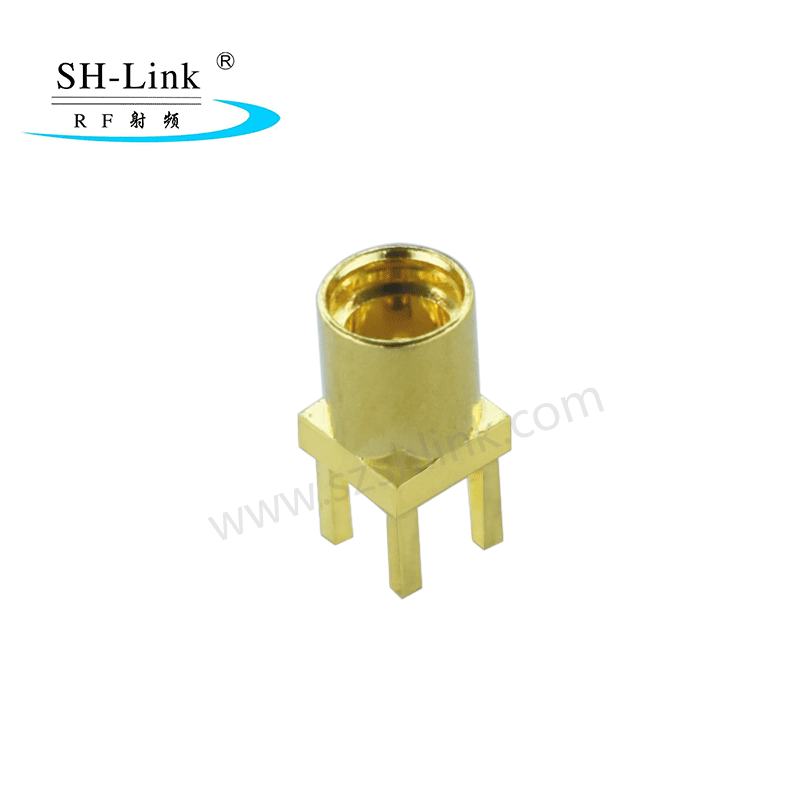

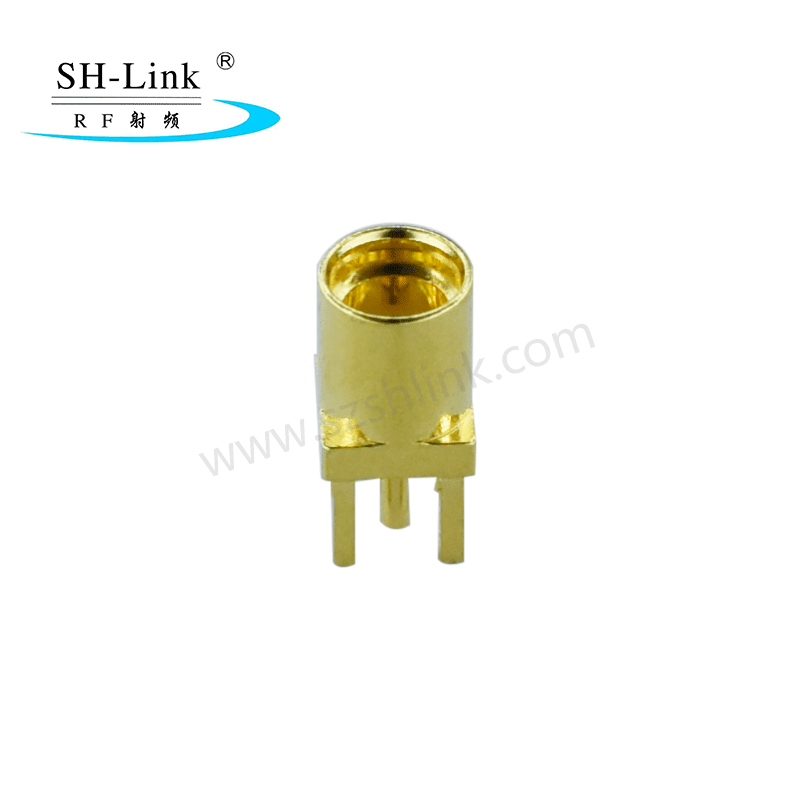

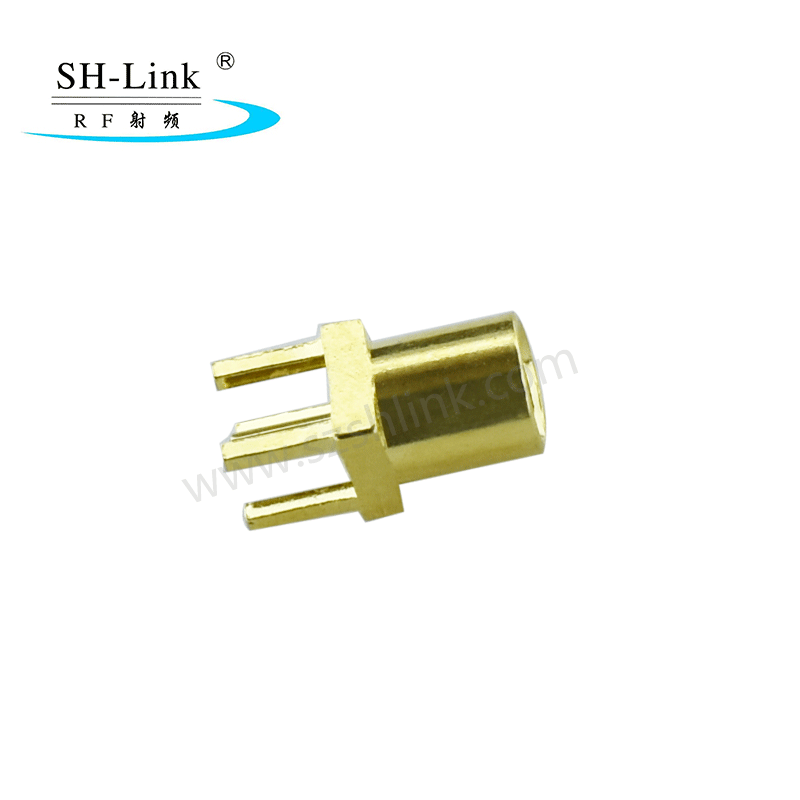

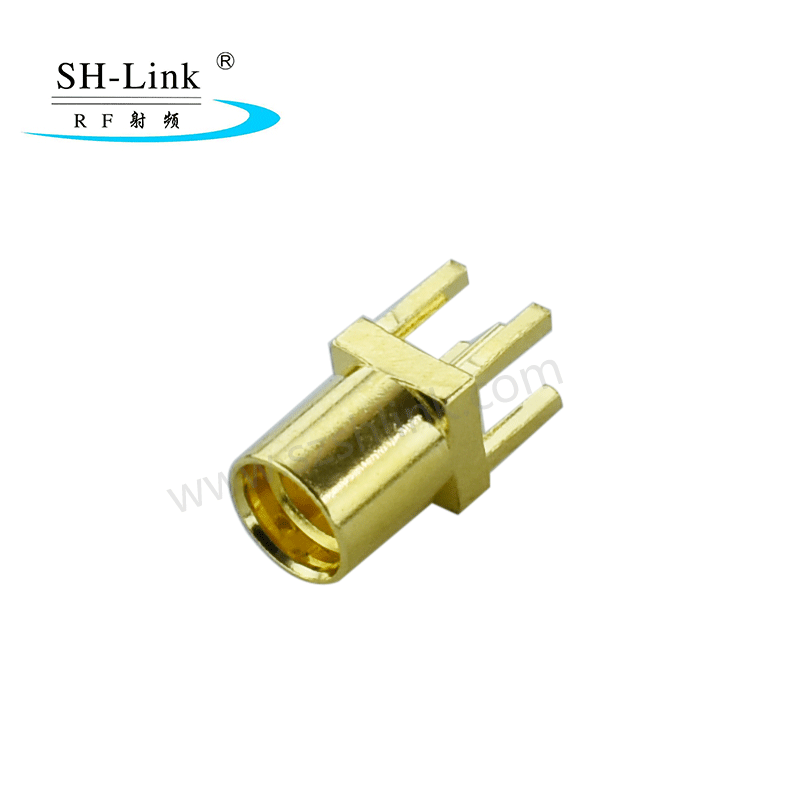

RF coaxial adapter MMCX straight connector, PCB panel mount jack connector

MMCX type RF coaxial connectors are characterized by their small size, light weight, and convenient and
reliable  connection. They can be widely used in small mobile communication and network equipment 、
where size and weight are important for connecting RF coaxial cables or transmitting RF signals.


Frequency range: DC-6GHz,
Impedance: 50 ohms,
Temperature resistance: -55°C-＋125°C,


 Connector Materials:
body: Gold-plated brass ;
pin contact: Gold-plated beryllium copper；

Insulator: PTFE；


We offer high-quality, high-volume production. We offer custom lengths and sizes at competitive
prices, ensuring reliable and secure operation.

Temperature range -55—+155℃（PE Cable -40—+85℃）
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 170V r.m.s at sea level
Withstanding voltage 500V r.m.s at sea level
Contact resistance
Center contact ≤5mΩ
Outer contact ≤2.5mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤15N
Disengagement force ≥6N
Voltage Standing Wave Ratio
 Straight ≤1.25/3GHz
 Right angle ≤1.43/3GHz
Durability(mating) ≥500times(Cycles)
  • *
  • *
