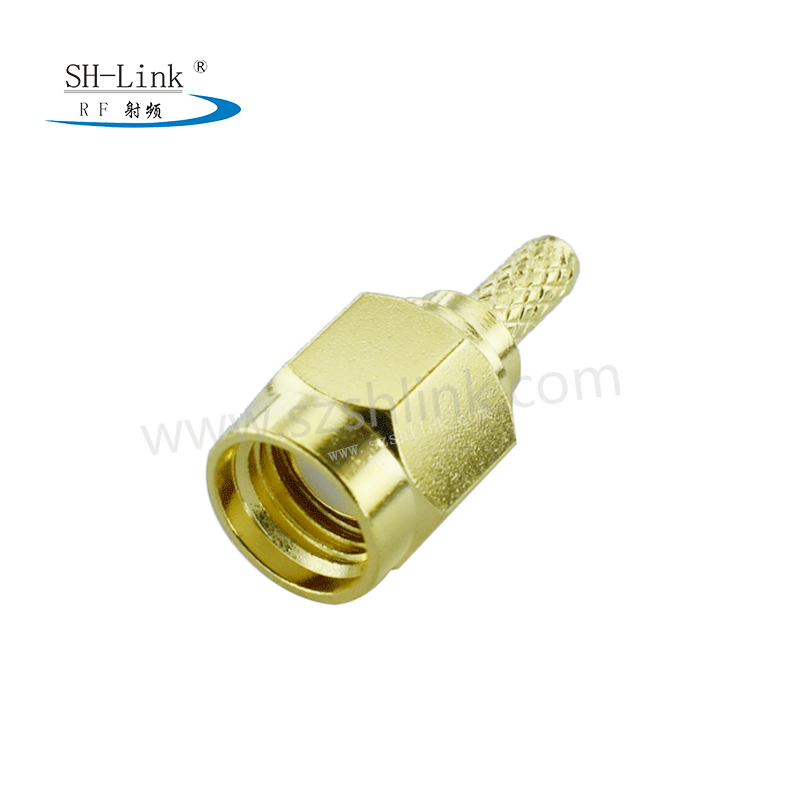

SMA connectors are widely used small threaded coaxial connectors characterized by wide bandwidth,
superior performance, and high reliability. They are suitable for connecting RF cables or microstrip
lines in wireless networks, programmable control systems, microwave equipment, and digital
communication systems.

The connector is compatible with RG174/RG316cables.

Frequency range: DC-3 GHz,
Impedance: 50 ohms,
Temperature resistance: -55°C-155°C,

 Connector Materials:
body: Gold-plated brass；
Center pin: Gold-plated brass；

Insulator: PTFE；
Copper tube: Nickel-plated brass;

Nut: Gold-plated brass；

Washer: Silicone;

Spring washer: Gold-plated steel;

We offer high-quality, high-volume production. We offer custom lengths and sizes at competitive
prices, ensuring reliable and secure operation.

特性阻抗:50Ω，75Ω

极限频率:6GHz

驻波比:1.1+0.02f(GHz) For RG316/

插入损耗:0.250×√f(GHz)

耐电压:750V / 50 Hz

绝缘电阻: ≥1000MΩ

接触电阻:中心导体间 ≤5 mΩ ;外导体间 ≤1 mΩ

机械参数

插入力 ≤25N

拔出力 8N-20N

接触保持力 ≥10N

插拔次数 ≥500cycles

使用环境

温度范围 -55°C (-67°F)up to +155°C(+311°F)

湿度 MIL-STD-202

振动 MIL-STD-202

耐蚀性 MIL-STD-202

材料

壳体 黄铜

中心接触体:插针 黄铜 ;插孔 铍铜

外接触体 铍铜

压接套管 铜

其它金属件 黄铜

绝缘材料 聚四氟乙烯
