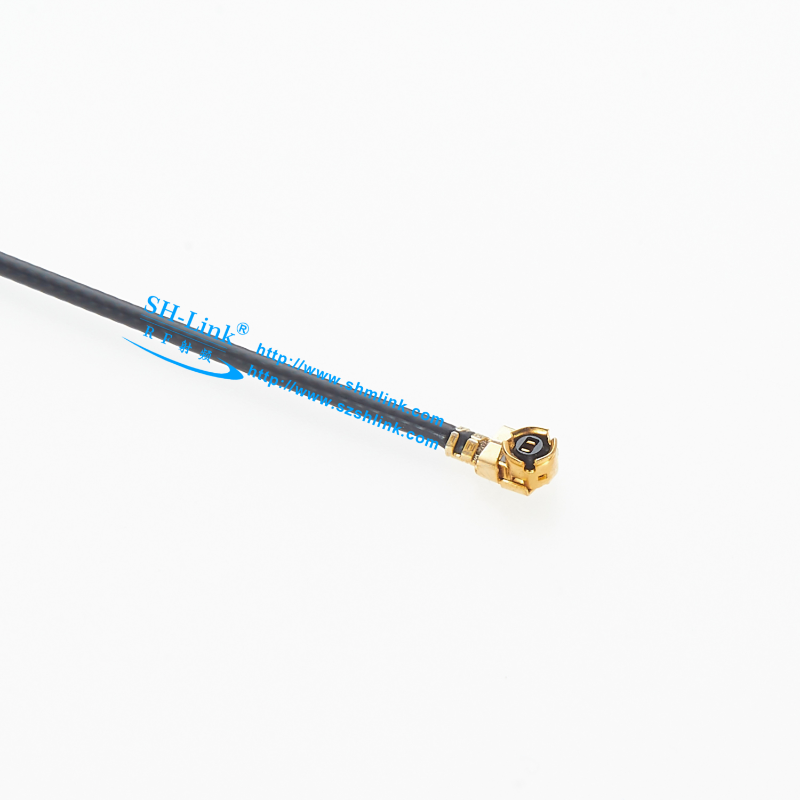

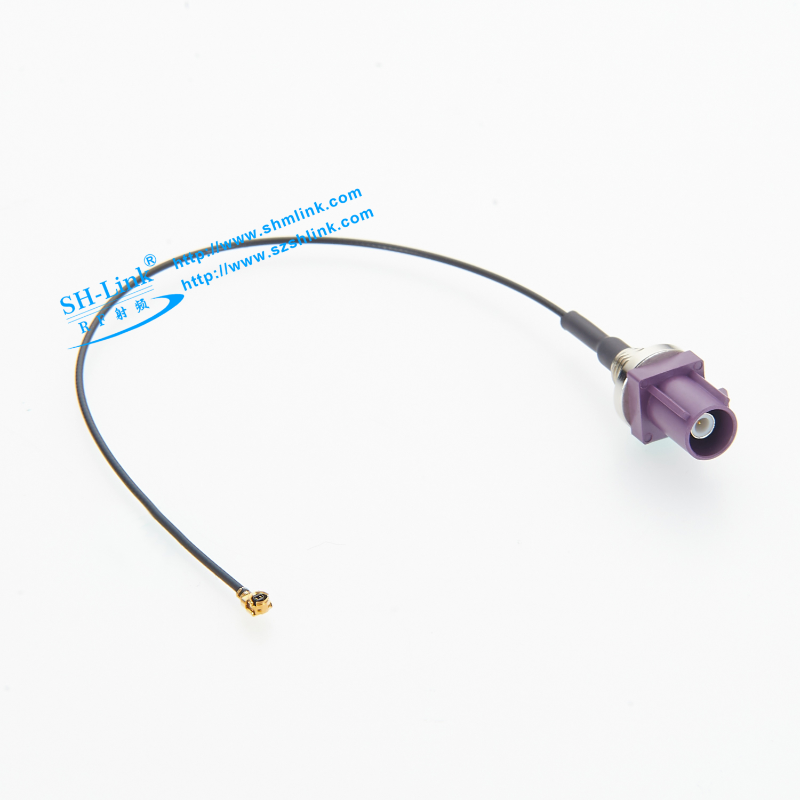

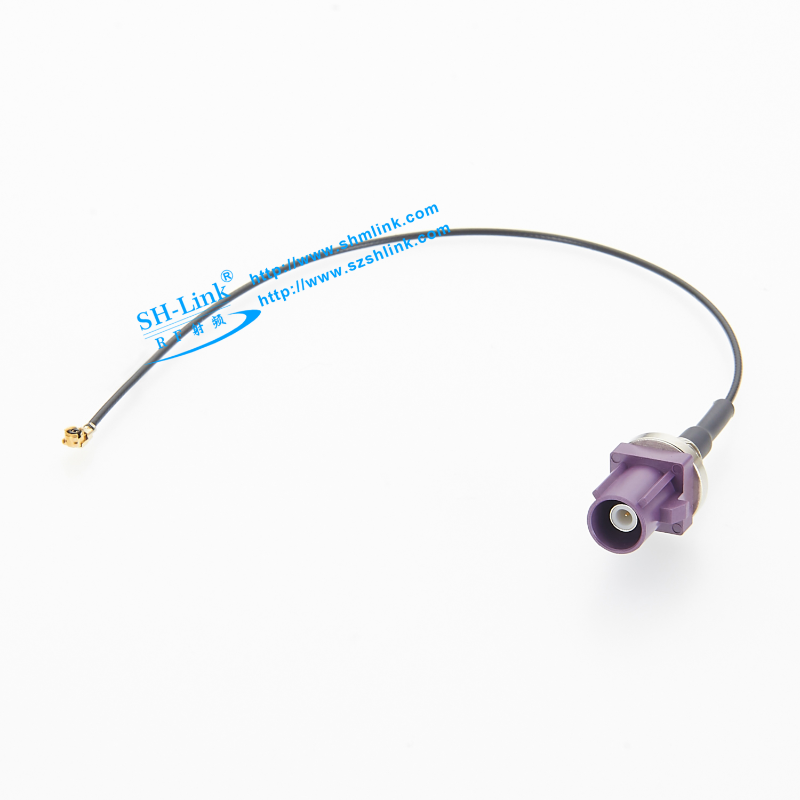

Fakra M straight male-IPEX coaxial cable

RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB (Double Braid Shield )MIL-C-17 RG316 Coaxial Cable

Product Description

This Fakra Male Threaded to IPEX Cable Assembly is specifically designed to facilitate signal interconnection between GPS navigation antennas, 5G V2X (Vehicle-to-Everything) antennas, and in-vehicle Bluetooth/Wi-Fi antennas, and their corresponding micro-modules (featuring IPEX interfaces on PCBs). It is particularly well-suited for applications involving severe vibration and requiring exceptionally high connection stability (e.g., roof-mounted antennas, door modules, and chassis-mounted communication equipment). It comes standard with 1.13-specification coaxial cable.

Operating Frequency: DC–6 GHz; Impedance: 50 Ohms

Connector Materials: Housing: Brass (Ternary Alloy); Center Pin: Gold-plated Brass; Insulator: PTFE; Ferrule: Nickel-plated Brass; Outer Cover: PA66 + 30% GF; Sealing Ring: Black Silicone

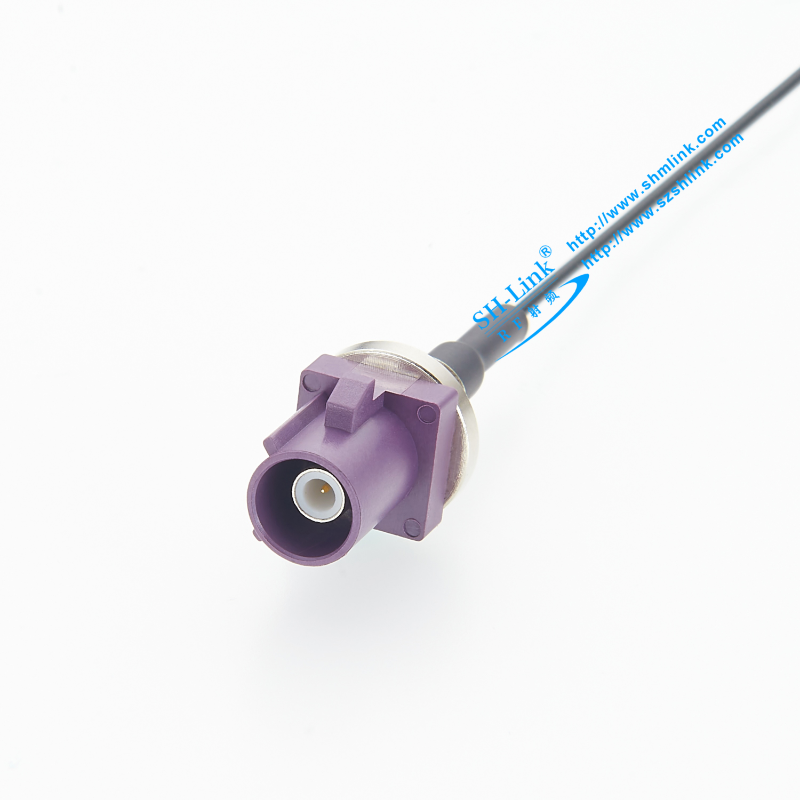

This FAKRA connector is designated as Type D. A total of 14 distinct types are available: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each type corresponds to a specific color code, and the different types are mutually incompatible to prevent mismating.

We offer high-quality, large-scale mass production services. Additionally, we can provide products with customized cable lengths and dimensions at reasonable prices, ensuring the safety and reliability of the final product. Inquiries are welcome.
