MCX Coaxial Connectors

TYPE MCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small volume、light weight、concise structure、easy to use.They are widely used in the Global Position System、Digital Personal Computer Network、all kinds of radio instruments、small-sized electronic equipments and WLAN system.​

Details >>
MMCX Coaxial Connectors

TYPE MMCX RF Coaxial Connector is a Kind of Microminiature Product Smaller than type MCX.Characteristic impedance is 50Ω.The characteristic of connectors is in Small Volume,Light weight,Convenient Connection and reliable.They are widely used in Connect with the RF Coaxial Cables, Transmission of RF signal,equipments or small-sized communications Network that are demanding on systematic volume and weight.by using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assembly line.

Details >>
SMA Coaxial Connectors

TYPE SMA is a Kind of RF coaxial connectors that is widely applied, with small-sized thread coupling. Characteristic impedance is 50Ω.The characteristic of connectors is in wide frequency range、excellent performance、high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WIAN SYSTEM、controlled program、microwave equipment and the digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Details >>
SMB Coaxial Connectors

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume 、Light weight、excellent electrical performance、Easy to use.They are widely used in connection with RF coaxial cable in RF circuit of radio communication、test instrument、meter、radio station、TV station、the base ststion of the microwave system.

Details >>
SMC Coaxial Connectors

TYPE SMC is one Kind of miniature RF coaxial connectors which adds the thread connection form on the basis of SMB. Characteristic impedance is 50Ω.The characteristic of connectors is in small volume、light weight、reliable connection、great vibration performance.they are used in connecting RF coaxial cable in equipments and instruments.

Details >>

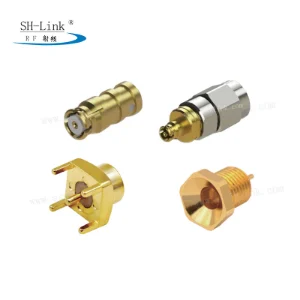

SMP Coaxial Connectors

SMP Connectors offer you precise mating and excellent vswr performance through 40GHz with competitive price ,Ther have excellent vibration and shock performance based on MIL standard and suitable for application such as broadbang,instrumentation and telecommunication application.

Details >>
SSMB Coaxial Connectors

TYPE SSMB is one kind of microminiature RF coaxial connector with snap-on coupling mechanism,characteristic impedance is 50 Ohm , The characteristic of connector is in small volume. light weight, easy to use, excellent electrical performance .They are widely used in connector with RF coaxial cable in the global position system, Digital personal computer network, wireless net card, PC/LAN, By using surface mounting technology ,the product is packed by rotobaler ,it is suitable for mass instrument equipment production and producing on the saaembly line.

Details >>
BMA Coaxial Connectors

SH-Link BMA Connectors offer you precise mating and excellent VSWR performance through 18GHz,They are desighed based on MIL standard and are ideally suited for communication base station equipment, rack-and-panel applications with appropriate float-mounted jacks,building block systems such.

Details >>
BNC Coaxial Connectors

Type BNC is one Kind of RF coaxial connectors using a bayonet type coupling mechanism,characteristic impedance has two types: 50Ω and 75Ω.They can be quick connect/disconnect、reliable lock etc.they are widely used in connection with the RF coaxial cables

Details >>
TNC Coaxial Connectors

TYPE TNC is a Kind of RF coaxial connectors with screw Coupling mechanism,Charecteristic impedance is 50Ω.The characteristic of connector is in wide working frequency,reliable connection,great vibration performance etc.They are used in connection with RF

Details >>
N Coaxial Connectors

Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connector is high reliability,great vibration performance,excellent mechanical and electrical performance etc.

Details >>
7/16(L29) Coaxial Connectors

Type 7/16(L29) is one kind of thread couping RF coaxial connector,characteristic impedance is 50 ohm.The characteristic of connector is in big power,low VSWR. Less attenuation、Low intermodulation,excellent nature of airtight.They are used in connection with feeder cables in broadcast,Television,ground launch system,monitoring of radar,mecrowave communication fields etc.Our company manufacturer produces many kinds of jumper lines,which can reduce your cost on cable.

Details >>
FME Coaxial Connectors

The thread of type FME product is M8X0.75.FME also have another name called SAP connector.they are used in the signal transmission with RF cable for all kinds of electronic instruments,Mobile communications,and antenna systems at the frequency of 3GHz.The

Details >>
UHF Coaxial Connectors

UHF connector is one kind of RF connector,UHF connector is designed to have thread coupling,Besides, UHF connector series are available for RF cable type and PCB type,UHF connector commonly is used for 0-300MHz,UHF connector was initially intended for use as a video connector for radar equipment, but it later became used in a variety of RF applications,Plug may be referred to as a PL259 coaxial connector and the socket as an SO239 connector,These are their original military part numbers.

Details >>
F Coaxial Connectors

Type F coaxial connector is the typical one used for 75 ohm cable assignment system,especially for CATV,broadcast television network,closed-circuit television,utensil of branch,utensil of distributor.It can be used for impedance mating requirement occasion,also can be used for no mating impedance occasion.Its characteristic is screw coupling,insert and close conveniently,stable performance,reasonalble price.FL10 product is M10 x 0.75 thread of metric; type F is 3/8-32UNEF thread of English system.Type F connectors are interchangeable with the same-type connector of bread.

Details >>
SHV Coaxial Connector

SH-Link has thousands of RF connectors, which are RoHS and REACH compliant. RF Connectors include FAKRA, MMCX, MCX, N Type, RP-SMA, RP-TNC, SMA, SMB, SMC, SMP, SSMA, SSMB, TNC, UHF series. SH-Link's RF connectors are to be terminated to either coaxial cable, terminal or printed circuit board (PCB).RF connectors are built in plug, jack, male, female, or neutral gender, in 50 Ohm or 75 Ohm impedance, and in standard polarity or reverse polarity.

Details >>
11/16-24(L42)Coaxial Connectors

Details >>
